Brand: CommScope
|
SKU:
10652634

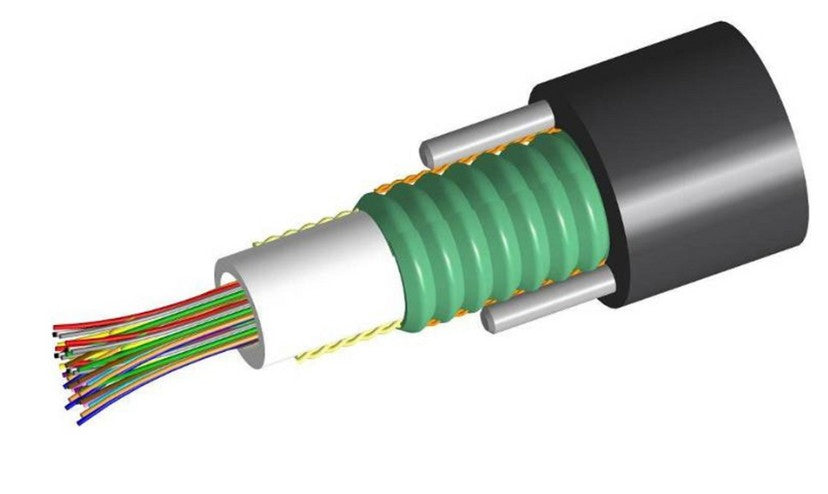

CommScope 8102408/DB | Fiber OSP cable, LightScope ZWP Single Jacket/Single Armor, Gel-Filled, 48 Fibers, Central Tube Cable, Singlemode
Regular price
$2.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 8102408/DB | Fiber OSP cable, LightScope ZWP Single Jacke...
Regular price
$2.55
Unit price
Description
Description
CommScope 8102408/DB | Fiber OSP cable, LightScope ZWP Single Jacket/Single Armor, Gel-Filled, 48 Fibers, Central Tube Cable, Singlemode
CommScope - 8102408/DB - Features
- Corrugated steel tape armor is strong yet flexible, providing additional crush and rodent protection
Specifications
Specifications
CommScope - 8102408/DB - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Fiber OSP cable |
| Product Series | O-CA |
| Armor Type | Corrugated steel |
| Cable Type | Central loose tube |
| Construction Type | Armored |
| Subunit Type | Gel-filled |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 4 |
| Diameter Over Jacket | 13 mm | 0.512 in |
| Minimum Bend Radius, loaded | 195 mm | 7.677 in |
| Minimum Bend Radius, unloaded | 130 mm | 5.118 in |
| Tensile Load, long term, maximum | 800 N | 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N | 606.984 lbf |
| Compression | 44 N/mm | 251.247 lbf/in |
| Fiber Type | G.652.D and G.657.A1 |
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-87-640 | EN 187105 |
| Environmental Space | Aerial, lashed | Buried |
| Jacket UV Resistance | UV stabilized |
