Brand: CommScope
|
SKU:
372-COMOS2-LTGFA-48

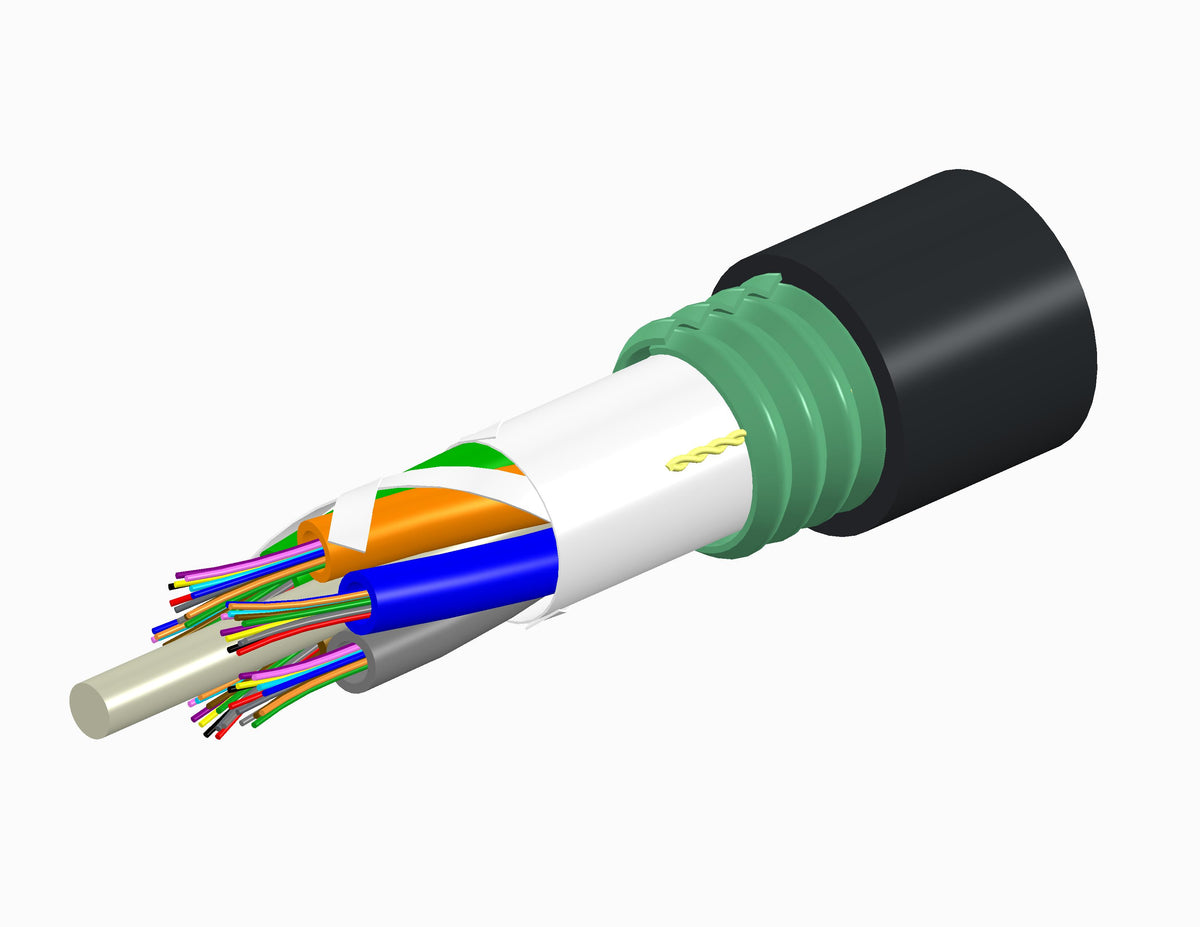

CommScope 8107300/DB | Fiber OSP cable, LightScope ZWP Single Jacket/Single Armor, Gel-Free, 48 fibers, Stranded Loose Tube
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 8107300/DB | Fiber OSP cable, LightScope ZWP Single Jacke...
Regular price
$1.46
Unit price
Brand: CommScope
|
SKU:
372-COMOS2-LTGFA-48
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 8107300/DB | Fiber OSP cable, LightScope ZWP Single Jacket/Single Armor, Gel-Free, 48 fibers, Stranded Loose Tube
Specifications
Specifications
CommScope - 8107300/DB - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 8107300/DB - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 8107300/DB | D-048-LA-8W-F12NS |
| Item Description | Fiber OSP cable, LightScope ZWP Single Jacket/Single Armor, Gel-Free, 48 fibers, Stranded Loose Tube, Singlemode G.652.D and G.657.A1, Feet jacket marking, Black jacket color |
| Armor Type | Corrugated steel |
| Cable Type | Stranded loose tube |
| Construction Type | Armored |
| Subunit Type | Gel-free |
| Filler, quantity | 1 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 48 |
CommScope - 8107300/DB - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber OSP cable |
| Product Series | D-LA |
CommScope - 8107300/DB - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 11.5 mm | 0.453 in |
| Material Specifications | - |
| Jacket Material | PE |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 173 mm | 6.811 in |
| Minimum Bend Radius, unloaded | 115 mm | 4.528 in |
| Tensile Load, long term, maximum | 800 N | 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N | 606.984 lbf |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 4.41 N-m | 39.032 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 740 m | 2427.822 ft |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1 | G.652.D and G.657.A1 |
| Environmental Specifications | - |
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-87-640 | EN 187105 |
