Brand: CommScope | SKU: 10652644

CommScope 8107360/DB | Fiber OSP cable, LightScope ZWP Single Jacket All-Dielectric, 48 Fiber, Gel-Free, Stranded Loose Tube, Singlemode

$1.37

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

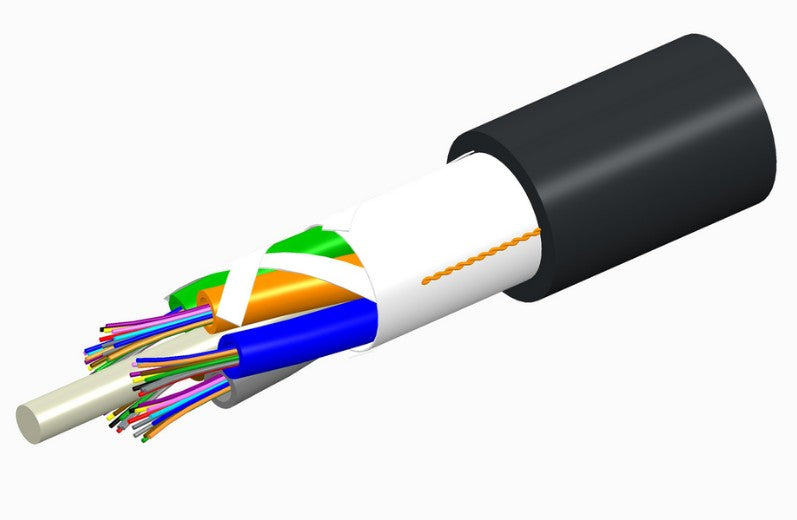

CommScope 8107360/DB | Fiber OSP cable, LightScope ZWP Single Jacket All-Dielectric, 48 Fiber, Gel-Free, Stranded Loose Tube, Singlemode

Specifications

CommScope - 8107360/DB - Specifications

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	D-LN
Cable Type	Stranded loose tube
Construction Type	Non-armored
Subunit Type	Gel-free
Jacket Color	Black
Jacket Marking	Feet
Subunit, quantity	4
Filler, quantity	1
Diameter Over Jacket	10.2 mm \| 0.402 in
Minimum Bend Radius, loaded	153 mm \| 6.024 in
Minimum Bend Radius, unloaded	102 mm \| 4.016 in
Tensile Load, long term, maximum	800 N \| 179.847 lbf
Tensile Load, short term, maximum	2700 N \| 606.984 lbf
Compression	22 N/mm \| 125.623 lbf/in
Fiber Type	G.652.D and G.657.A1
Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-87-640 \| EN 187105 \| Telcordia GR-20
Environmental Space	Aerial, lashed \| Buried
Jacket UV Resistance	UV stabilized

Documents and Downloads

CommScope 8107360/DB Data Sheet
