Brand: CommScope
|
SKU:
CMP-00423BNS-6R-01

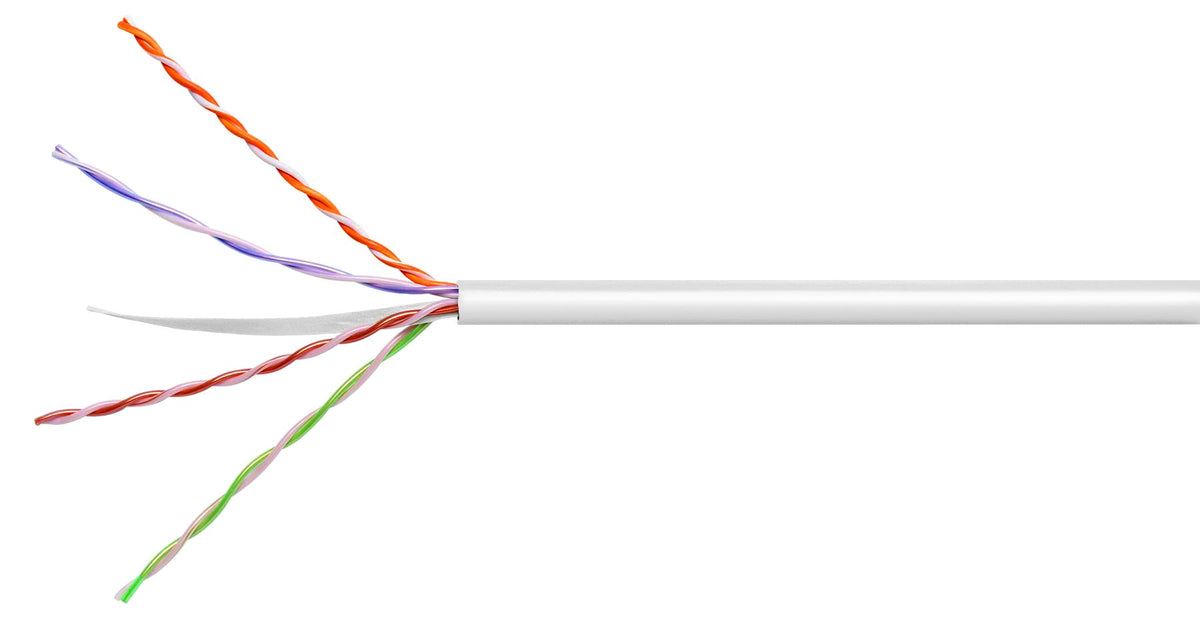

CommScope 874019904/10 | CS34P ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, Reel
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 874019904/10 | CS34P ETL Verified Category 6 U/UTP Cable,...
Regular price
$1.47
Unit price
Brand: CommScope
|
SKU:
CMP-00423BNS-6R-01
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 874019904/10 | CS34P ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, Reel
Specifications
Specifications
CommScope - 874019904/10 - Product Categories
- Cables
- Twisted Pair Cables
- Category 6 Cables
CommScope - 874019904/10 - Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | NETCONNECT |
| Product Type | Twisted pair cable |
CommScope - 874019904/10 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | CS34P ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, Reel |
| Model Number | 874019904/10 | CS34P WHT C6 4/23 U/UTP RL 1KFT |
| Product Number | CS34P |
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | White |
| Note | All electrical transmission tests include swept frequency measurements |
| Pairs, quantity | 4 |
| Separator Type | Tape separator |
| Transmission Standards | ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E |
CommScope - 874019904/10 - Additional Information
| Dimensions | - |
|---|---|
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Insulated Conductor | 0.978 mm | 0.0385 in |
| Diameter Over Jacket, nominal | 5.461 mm | 0.215 in |
| Jacket Thickness | 0.533 mm | 0.021 in |
| Conductor Gauge, singles | 23 AWG |
| Electrical Specifications | - |
| Characteristic Impedance | 100 ohm |
| dc Resistance Unbalance, maximum | 0.05 |
| dc Resistance, maximum | 8 ohms/100 m | 2.438 ohms/100 ft |
| Delay Skew, maximum | 45 ns |
| Dielectric Strength, minimum | 1500 Vac | 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 0.75 |
| Operating Frequency, maximum | 250 MHz |
| Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
| Safety Voltage Rating | 300 V |
