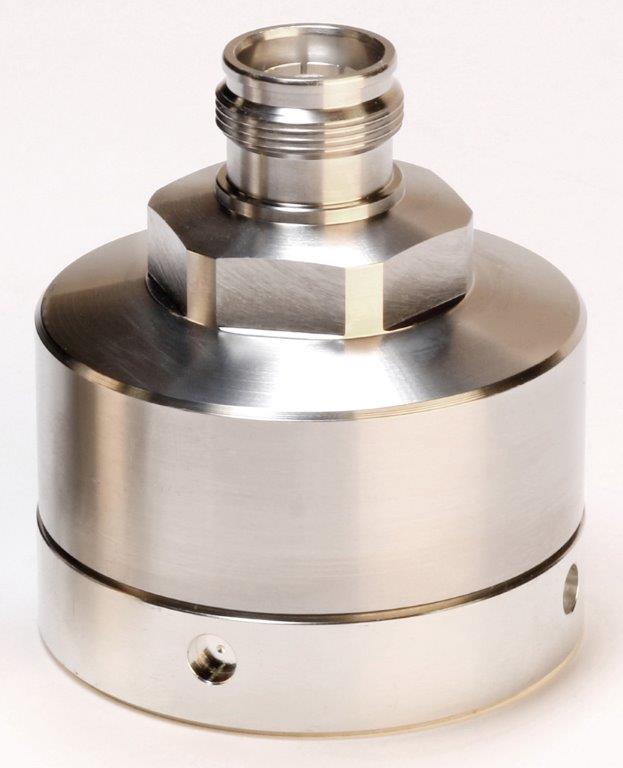

CommScope A7HF-S | 4.3-10 Female for 1-5/8 in AVA7-50 cable
Regular price
$165.85
Unit price
Brand: CommScope
|
SKU:
A7HF-S
Regular price
$165.85
Unit price
Description
Description
CommScope A7HF-S | 4.3-10 Female for 1-5/8 in AVA7-50 cable
Specifications
Specifications
CommScope - A7HF-S - Product Categories
- Connectors
- Wireless Transmission Connectors
- Wireless & Radiating Connectors
CommScope - A7HF-S - Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
| Product Series | AVA7-50 | AVA7RK-50 |
CommScope - A7HF-S - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | 4.3-10 Female for 1-5/8 in AVA7-50 cable |
| Model Number | A7HF-S |
| Body Style | Straight |
| Cable Family | AVA7-50 |
| Harmonized System (HS) Code | 85366910 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
CommScope - A7HF-S - Additional Information
| Dimensions | - |
|---|---|
| Length | 66.1 mm | 2.602 in |
| Diameter | 59.5 mm | 2.343 in |
| Nominal Size | 1-5/8 in |
| Electrical Specifications | - |
| 3rd Order IMD at Frequency | -117 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 2700 MHz |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 0–1000 MHz |
| Mechanical Specifications | - |
| Coupling Nut Proof Torque | 10 N-m | 88.507 in lb |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
