Brand: CommScope
|
SKU:
10479872

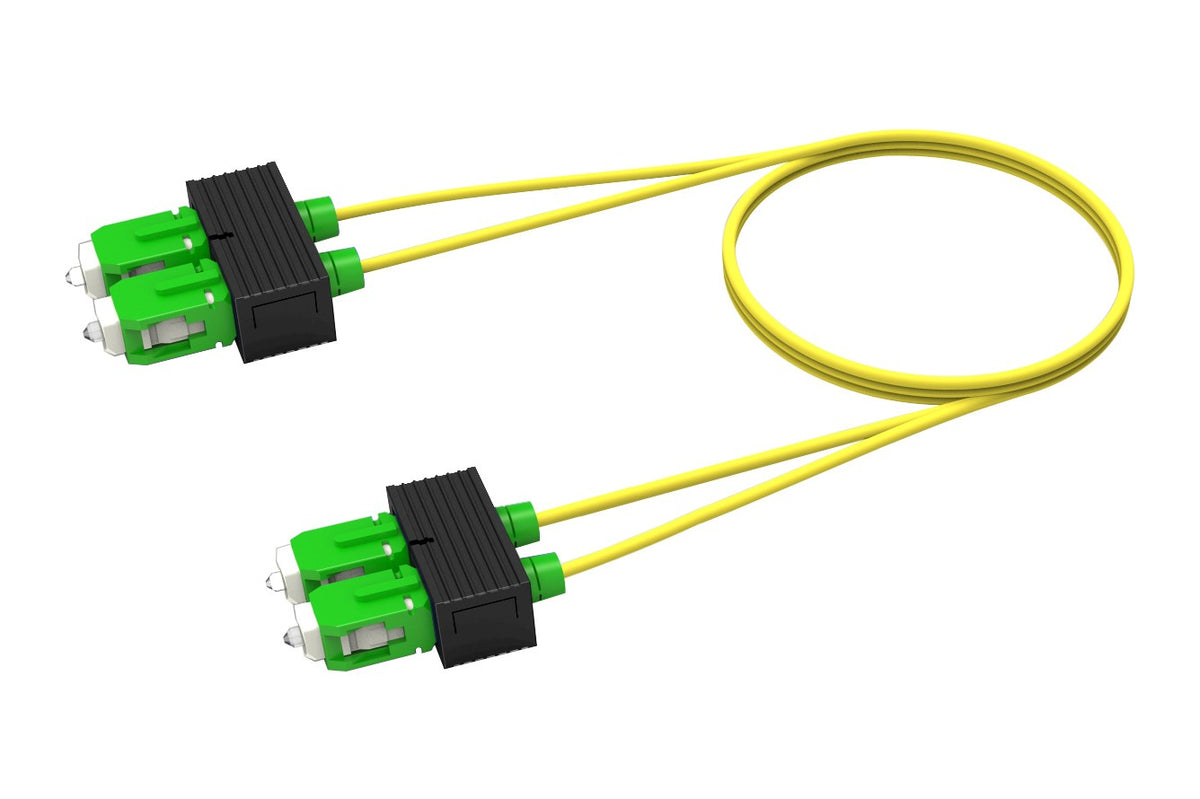

CommScope AFGSGSGM2-JXF0 | Fiber Patch Cord, Singlemode G.657.A2, Grade B, SC/APC to SC/APC, Duplex, 1.6 mm LSZH jacket
Regular price
$63.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope AFGSGSGM2-JXF0 | Fiber Patch Cord, Singlemode G.657.A2, G...
Regular price
$63.34
Unit price
Description
Description
CommScope AFGSGSGM2-JXF0 | Fiber Patch Cord, Singlemode G.657.A2, Grade B, SC/APC to SC/APC, Duplex, 1.6 mm LSZH jacket.
Specifications
Specifications
CommScope - AFGSGSGM2-JXF0 - Product Categories
- Cable Assemblies
- Fiber Cable Assemblies
- Fiber Patch Cords
CommScope - AFGSGSGM2-JXF0 - Specifications
| Portfolio | CommScope |
|---|---|
| Product Type | Fiber patch cord, duplex |
| Product Series | AFG |
| Connector A, quantity | 2 |
| Color, connector A | Green |
| Connector B, quantity | 2 |
| Color, connector B | Green |
| Interface, Connector A | SC/APC |
| Interface, Connector B | SC/APC |
| Total Fibers, quantity | 2 |
| Transmission Standards | IEC 61755 |
| Cable Assembly Length Range (m) | 1 – 999 |
| Cable Assembly Length Range (ft) | 1 – 999 |
| Diameter Over Jacket | 1.6 mm | 0.063 in |
| Minimum Bend Radius, loaded | 50 mm | 1.969 in |
| Minimum Bend Radius, unloaded | 30 mm | 1.181 in |
| Tensile Load, long term, maximum | 66 N | 14.837 lbf |
| Tensile Load, short term, maximum | 220 N | 49.458 lbf |
| Cable Crush Resistance, maximum | 3.5 N/mm | 19.986 lb/in |
| Mating Durability, maximum | 0.2 dB @ 500 cycles |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2, TeraSPEED |
| Performance Grade | IEC Random Mating Grade B |
| Insertion Loss, maximum, connector A | 0.25 dB |
| Insertion Loss, maximum, connector B | 0.25 dB |
| Return Loss, minimum, connector A | 65 dB |
| Return Loss, minimum, connector B | 65 dB |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Dual Rated LSZH/Riser |
| Packaging quantity | 1 |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
