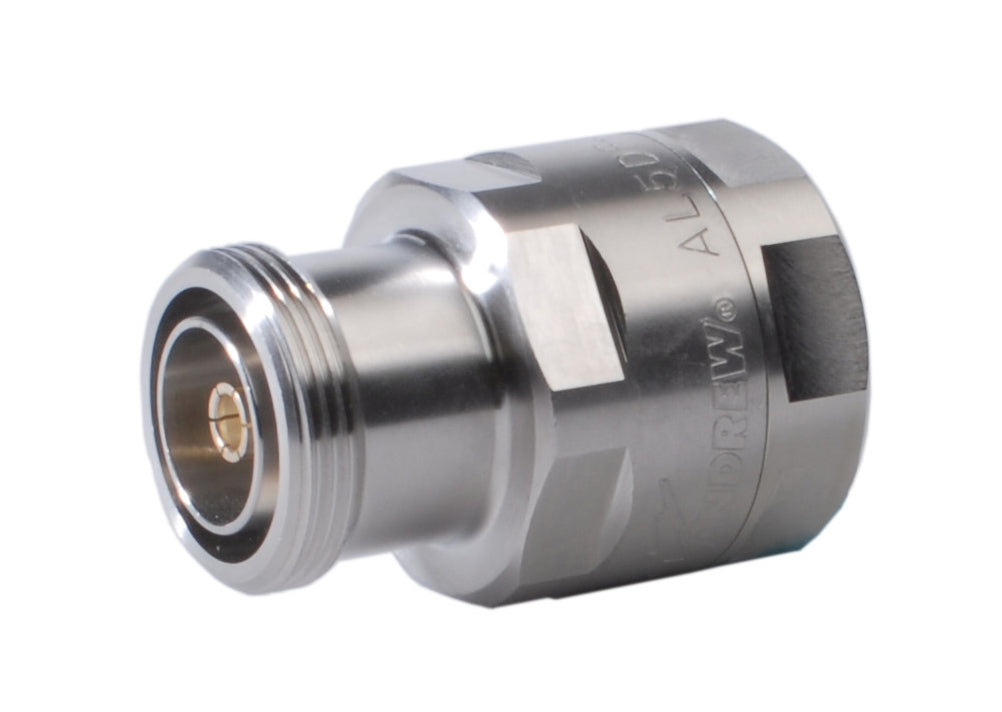

CommScope AL5DF-PSA | 7-16 DIN Female Positive Stop for 7/8 in AVA5-50 cable
Specifications
Specifications
CommScope - AL5DF-PSA - Product Categories
- Connectors
- Wireless Transmission Connectors
- Wireless & Radiating Connectors
CommScope - AL5DF-PSA - Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX| Positive Stop |
| Product Series | AVA5-50 | AVA5RK-50 |
| Ordering Note | CommScopenon-standard product |
CommScope - AL5DF-PSA - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | 7-16 DIN Female Positive Stop for 7/8 in AVA5-50 cable |
| Model Number | AL5DF-PSA |
| Body Style | Straight |
| Cable Family | AL5-50 | AVA5-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
CommScope - AL5DF-PSA - Additional Information
| Dimensions | - |
|---|---|
| Length | 54.86 mm | 2.160 in |
| Diameter | 37.08 mm | 1.460 in |
| Nominal Size | 7/8 in |
| Electrical Specifications | - |
| 3rd Order IMD at Frequency | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 3.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5200 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -130 dB |
