Brand: CommScope
|
SKU:
AL5DM-PSA

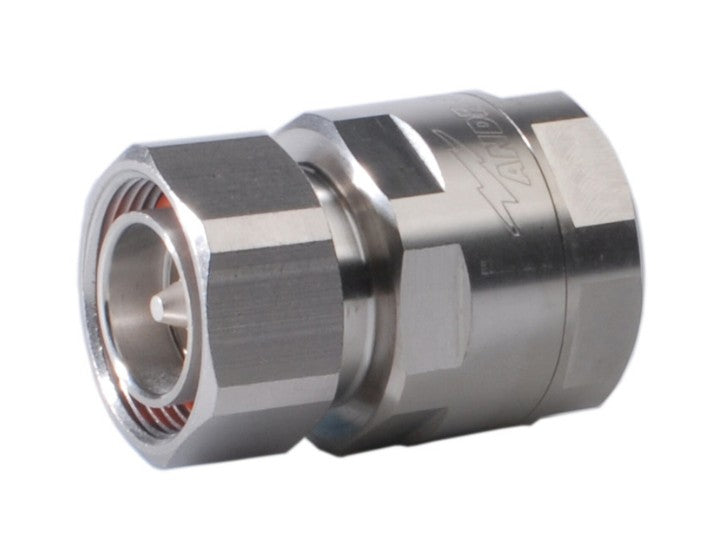

CommScope AL5DM-PSA | 7-16 DIN Male Positive Stop for 7/8 in AVA5-50 cable
Regular price
$25.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope AL5DM-PSA | 7-16 DIN Male Positive Stop for 7/8 in AVA5-5...
Regular price
$25.62
Unit price
Description
Description
CommScope AL5DM-PSA | 7-16 DIN Male Positive Stop for 7/8 in AVA5-50 cable
Specifications
Specifications
CommScope - AL5DM-PSA - Specifications
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX® | Positive Stop™ |
| Product Series | AVA5-50 | AVA5RK-50 |
| Body Style | Straight |
| Cable Family | AL5-50 | AVA5-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Length | 52.83 mm | 2.080 in |
| Diameter | 37.08 mm | 1.460 in |
| Nominal Size | 7/8 in |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5200 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
