Brand: CommScope
|
SKU:
464660

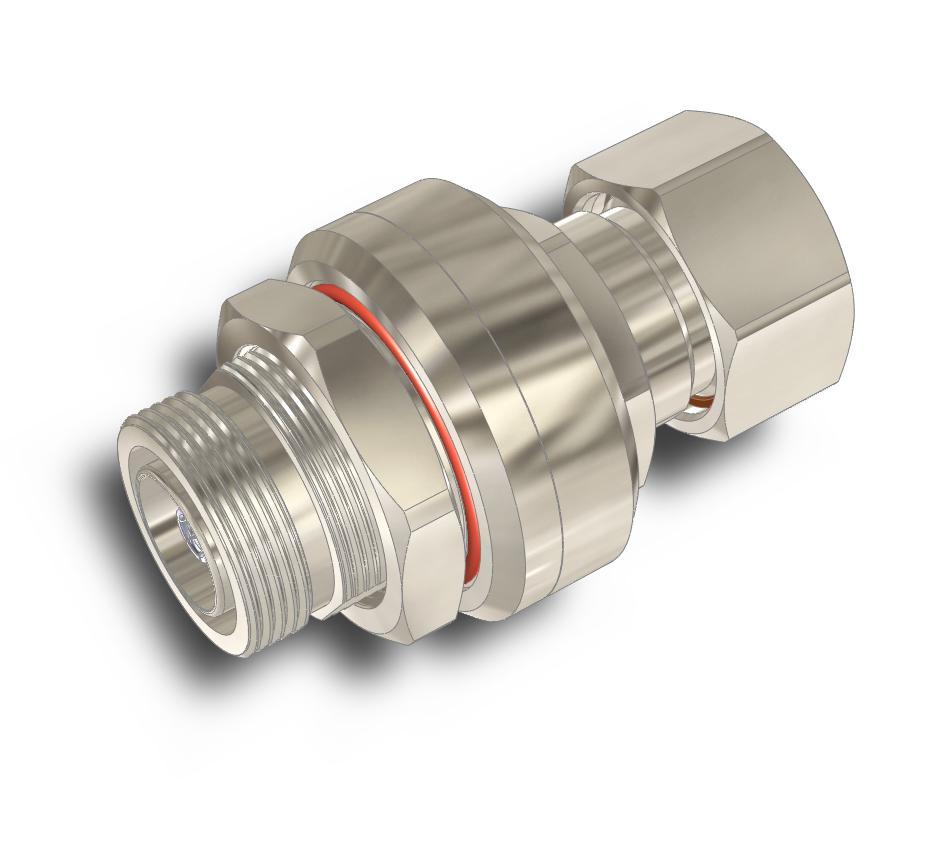

Commscope APC-BDFDM-450A | Quarterwave Surge Arrestor (Cylindrical), 380–520 MHz, with interface types DIN Female Bulkhead and DIN Male, Includes Hardware
Regular price
$152.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope APC-BDFDM-450A | Quarterwave Surge Arrestor (Cylindrical)...
Regular price
$152.57
Unit price
Description
Description
Commscope APC-BDFDM-450A | Quarterwave Surge Arrestor (Cylindrical), 380–520 MHz, with interface types DIN Female Bulkhead and DIN Male, Includes Hardware
Specifications
Specifications
Product Classification
| Product Type | Surge arrestor |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Device Type | dc Block |
|---|---|
| Body Style | Bulkhead |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female Bulkhead |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 47.498 mm / 1.87 in |
|---|---|
| Width | 47.498 mm / 1.87 in |
| Length | 78.994 mm / 3.11 in |
Electrical Specifications
| 3rd Order IMD Gain | -117 dB |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.1 dB |
| Connector Impedance | 50 ohm |
| Lightning Surge Capability | 100 times/40 kA |
| Lightning Surge Capability Test Method | IEEE C62.42-1991 |
| Lightning Surge Capability Waveform | 8/20 waveform |
| Lightning Surge Current | 40 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 380 – 520 MHz / 411 – 494 MHz |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Coupling Nut Proof Torque | 24.857 N-m / 220 in lb |
| Coupling Nut Retention Force | 1000.85 N / 225 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 0.413 kg / 0.91 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
