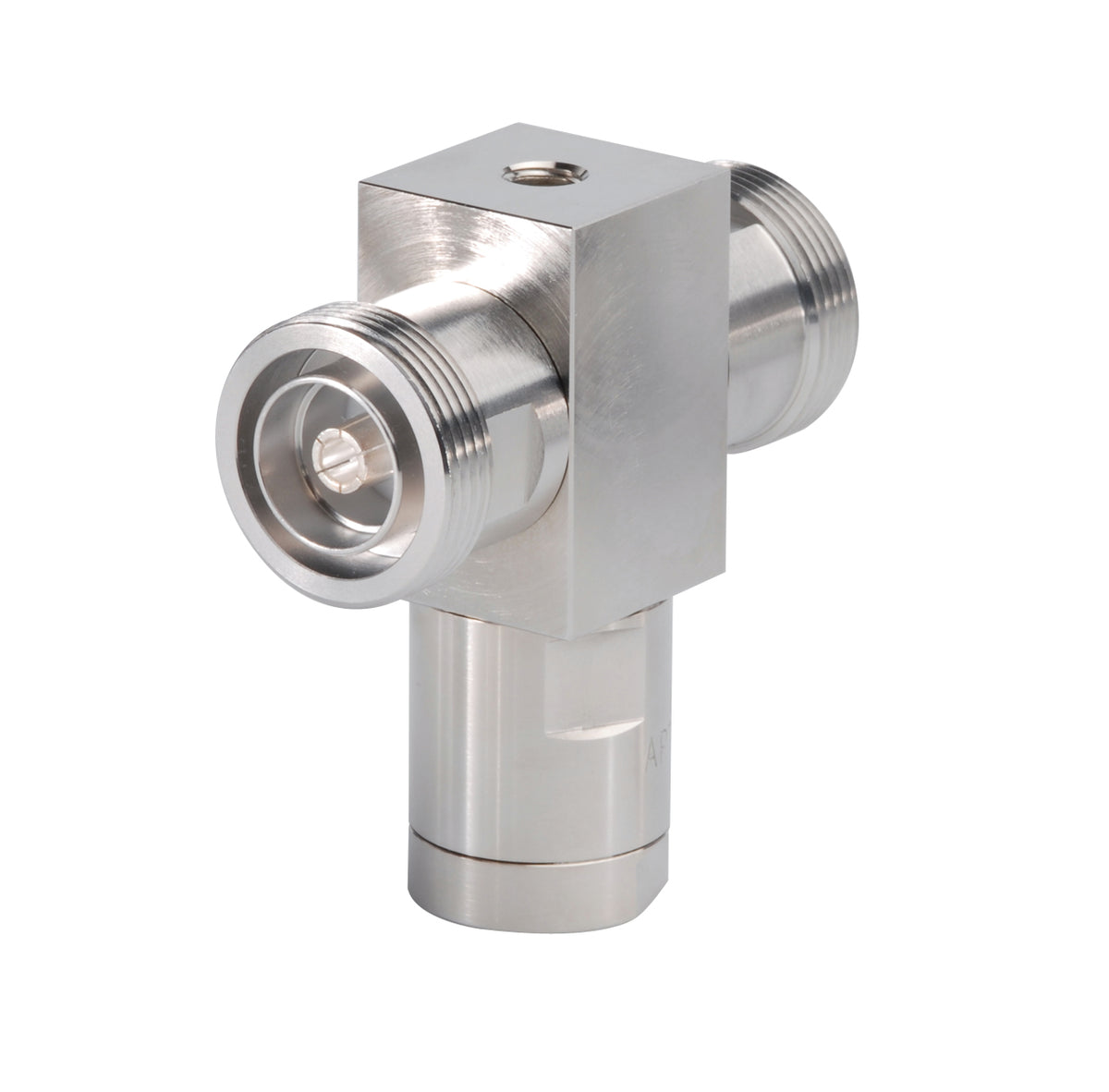

Commscope APT-DFDF-DB | Arrestor Plus Dual Band Quarterwave Surge Arrestor (T-shaped) with interface types DIN Female and DIN Female
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Surge arrestor |
|---|---|
| Product Brand | Arrestor Plus |
| Ordering Note | CommScope non-standard product |
General Specifications
| Device Type | dc Block |
|---|---|
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Female |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 74.168 mm / 2.92 in |
|---|---|
| Width | 29.972 mm / 1.18 in |
| Length | 69.596 mm / 2.74 in |
Electrical Specifications
| 3rd Order IMD | -117 dBm |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.07 dB |
| Average Power at Frequency | 3,000.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| Lightning Surge Capability | 100 times @ 20 kA |
| Lightning Surge Capability Test Method | IEEE C62.42-1991 |
| Lightning Surge Capability Waveform | 8/20 waveform |
| Lightning Surge Current | 30 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 824 – 960 MHz / 1710 – 2000 MHz / 2000 – 2170 MHz |
| Peak Power, maximum | 40 kW |
| Throughput Energy at Current | 2.0 mJ @ 30 kA / 25.0 ?J @ 2 kA |
| Throughput Energy Waveform | 8/20 waveform |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +150 °C (-40 °F to +302 °F) |
|---|---|
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
Packaging and Weights
| Weight, net | 0.431 kg / 0.95 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
