Brand: CommScope
|
SKU:
427099

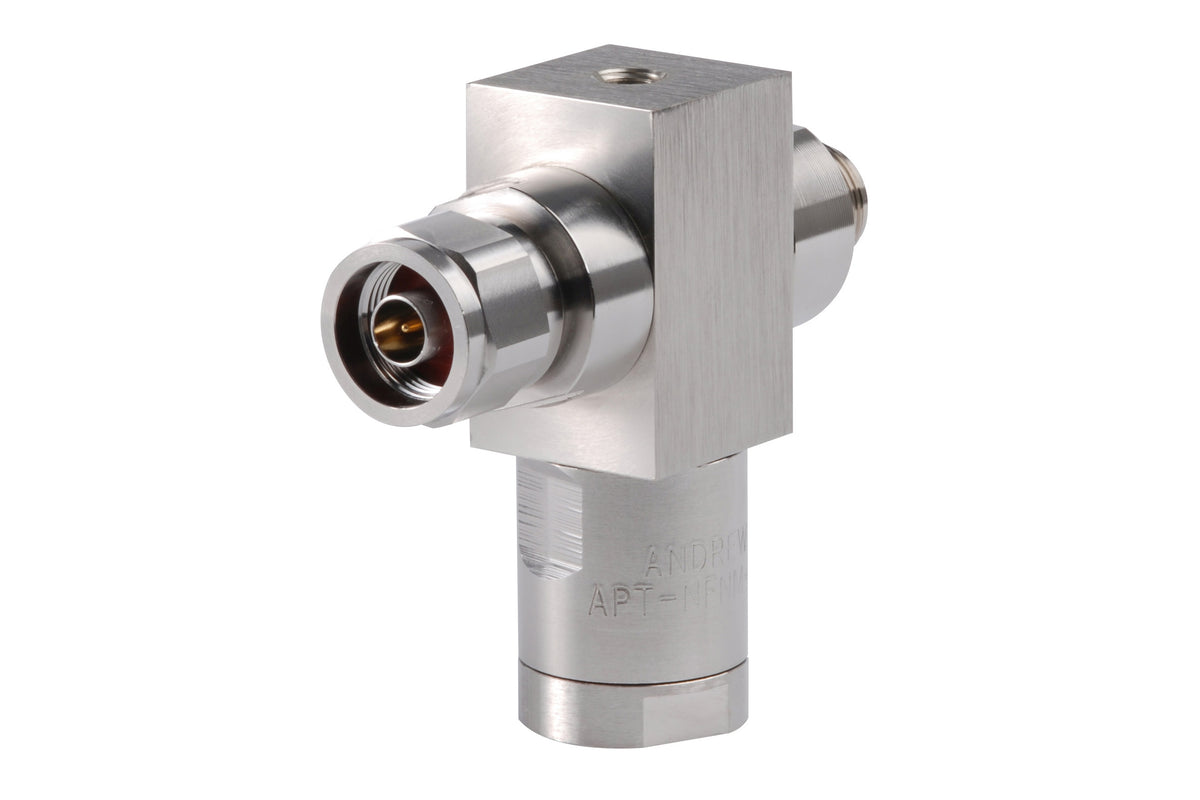

CommScope APT-NFNM-DB | Arrestor Plus Dual Band Quarterwave Surge Arrestor (T-shaped, Cylindrical), 806–2170 MHz, with interface types N Female and N Male
Regular price
$125.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope APT-NFNM-DB | Arrestor Plus Dual Band Quarterwave Surge A...
Regular price
$125.62
Unit price
Description
Description
CommScope APT-NFNM-DB | Arrestor Plus Dual Band Quarterwave Surge Arrestor (T-shaped, Cylindrical), 806–2170 MHz, with interface types N Female and N Male
Specifications
Specifications
CommScope - APT-NFNM-DB - Product Categories
- Cable Assemblies
- Surge Arrestors & Accessories
- Quarter Wave Shorting Stubs
CommScope - APT-NFNM-DB - Product Classification
| Product Type | Surge arrestor |
|---|---|
| Product Brand | Arrestor Plus |
| Ordering Note | CommScopestandard product in Asia Pacific |
CommScope - APT-NFNM-DB - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Arrestor Plus Dual Band Quarterwave Surge Arrestor (T-shaped, Cylindrical), 806–2170 MHz, with interface types N Female and N Male |
| Model Number | APT-NFNM-DB |
| Device Type | dc Block |
| Inner Contact Plating | Gold |
| Interface | N Female |
| Interface 2 | N Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
CommScope - APT-NFNM-DB - Additional Information
| Dimensions | - |
|---|---|
| Height | 74 mm | 2.913 in |
| Width | 25 mm | 0.984 in |
| Length | 80 mm | 3.150 in |
| Electrical Specifications | - |
| 3rd Order IMD | -117 dBm |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.07 dB |
| Average Power at Frequency | 600.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| Lightning Surge Capability | 100 times @ 20 kA |
| Lightning Surge Capability Test Method | IEEE C62.42-1991 |
| Lightning Surge Capability Waveform | 8/20 waveform |
| Lightning Surge Current | 30 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 806 – 960 MHz | 960 – 1710 MHz | 1710 – 2000 MHz | 2000 – 2170 MHz |
| Peak Power, maximum | 10 kW |
| Throughput Energy at Current | 2.0 mJ @ 30 kA | 25.0 ?J @ 2 kA |
| Throughput Energy Waveform | 8/20 waveform |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 806–960 MHz |
