Commscope APTDC-BDFDF-DB | Arrestor Plus LTE Band Quarterwave dc Passing Surge Arrestor (T-shaped), 698–2170 MHz, with interface types DIN Female Bulkhead and DIN Female
Regular price
$137.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope APTDC-BDFDF-DB | Arrestor Plus LTE Band Quarterwave dc Pa...
Regular price
$137.32
Unit price
Description
Description

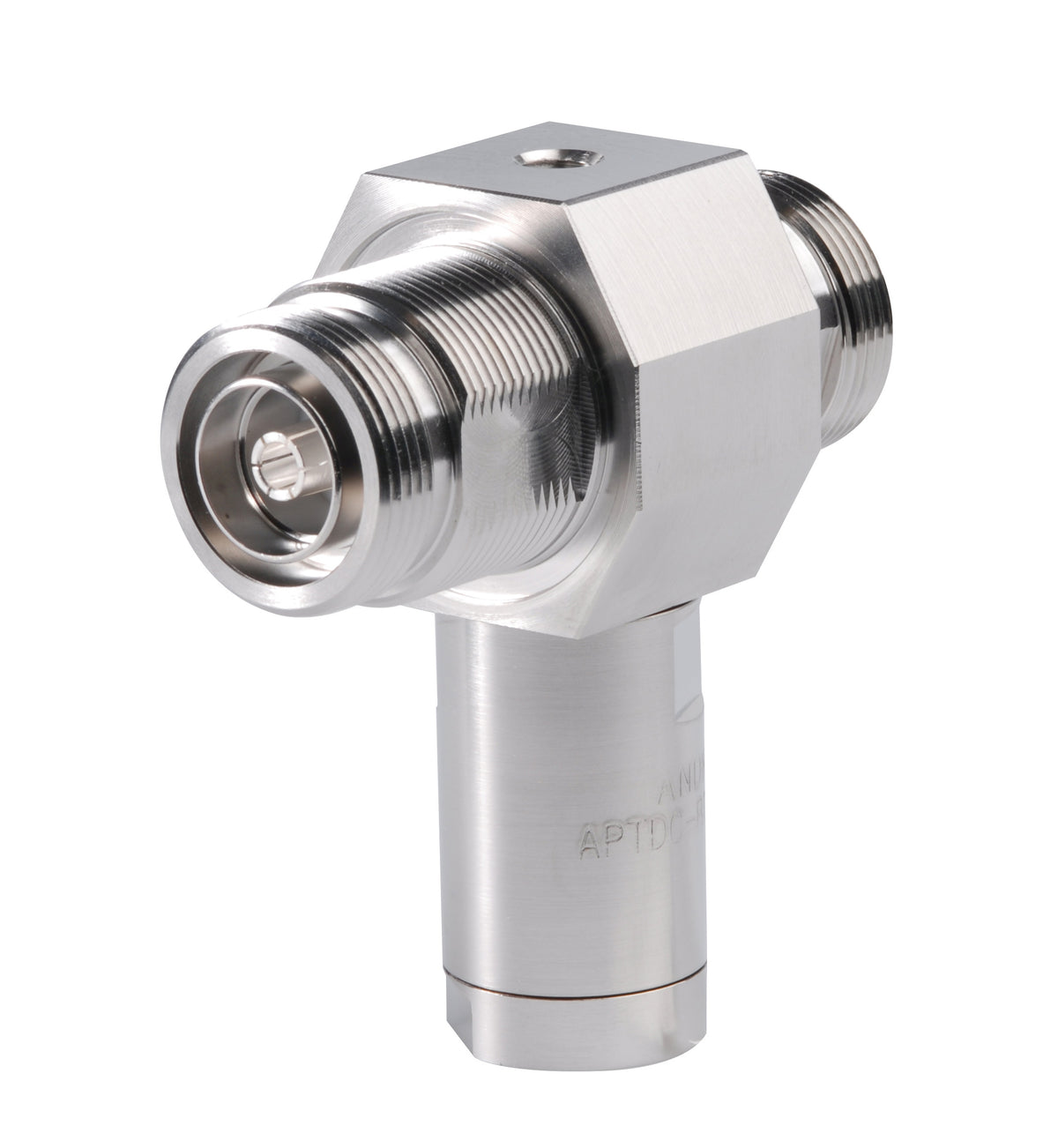

Commscope APTDC-BDFDF-DB | Arrestor Plus LTE Band Quarterwave dc Passing Surge Arrestor (T-shaped), 698–2170 MHz, with interface types DIN Female Bulkhead and DIN Female
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Surge arrestor |
|---|---|
| Product Brand | Arrestor Plus |
| Ordering Note | CommScope standard product in the United States and Canada |
General Specifications
| Device Type | dc Pass |
|---|---|
| Body Style | Bulkhead |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female Bulkhead |
| Interface 2 | 7-16 DIN Female |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 81.026 mm / 3.19 in |
|---|---|
| Width | 41.91 mm / 1.65 in |
| Length | 87.884 mm / 3.46 in |
Electrical Specifications
| 3rd Order IMD | -117 dBm |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Average Power | 3000 W |
| Connector Impedance | 50 ohm |
| Gas Tube Voltage | 350 V |
| Lightning Surge Capability | 10 times @ 30 kA |
| Lightning Surge Capability Test Method | IEEE C62.42-1991 |
| Lightning Surge Capability Waveform | 8/20 waveform |
| Lightning Surge Current | 30 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 698 – 2170 MHz |
| Peak Power, maximum | 40 kW |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
|---|---|
| Storage Temperature | -70 °C to +150 °C (-94 °F to +302 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Water Jetting Test Mating | Mated |
Packaging and Weights
| Weight, net | 0.64 kg / 1.41 lb |
|---|
Regulatory Compliance/Certifications
| AISG | Compliant |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
