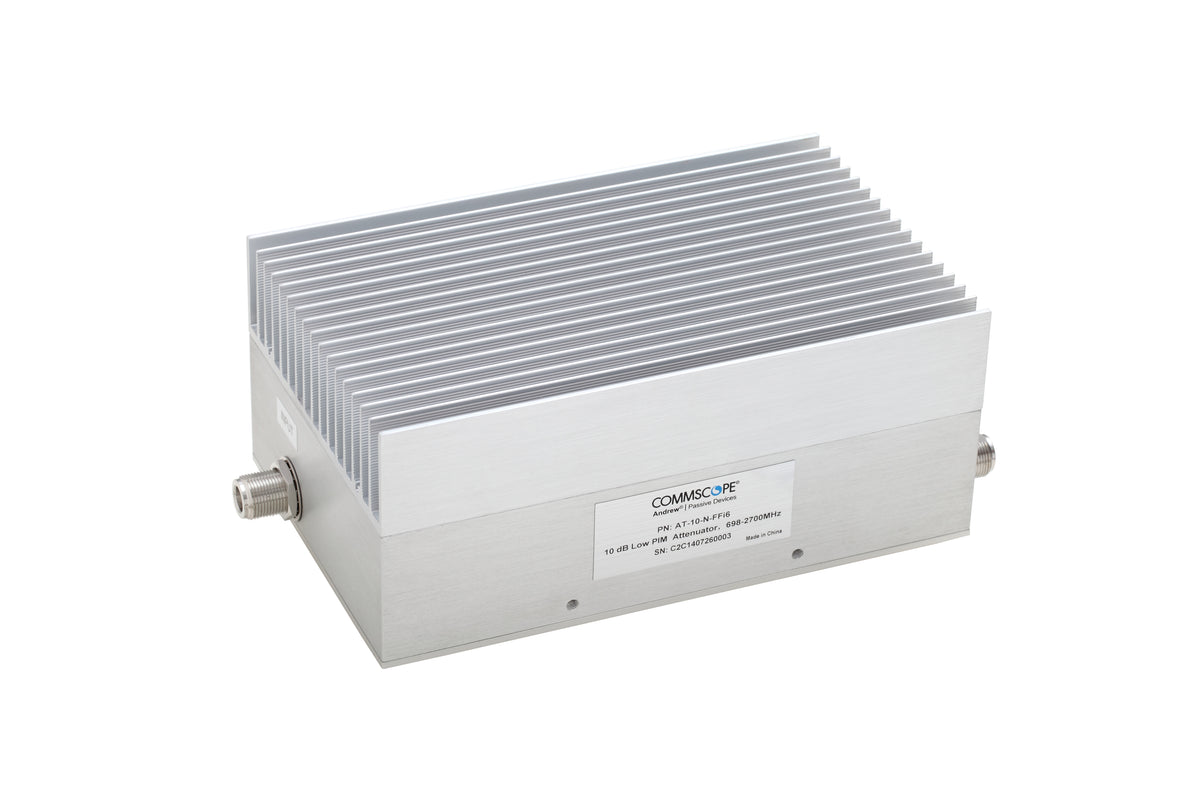

Commscope AT-10-N-FFI6 | 10 dB Low PIM Attenuator 555–2700 NF-NF
Regular price
$1,097.14
Unit price
Brand: CommScope
|
SKU:
AT-10-N-FFI6
Regular price
$1,097.14
Unit price
Description
Description
10 dB Low PIM Attenuator 555–2700 NF-NF
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Attenuator |
General Specifications
| Device Type | Attenuator |
|---|---|
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Interface 2 | N Female |
Dimensions
| Height | 89 mm | 3.504 in |
|---|---|
| Width | 130 mm | 5.118 in |
| Length | 247 mm | 9.724 in |
Electrical Specifications
| 3rd Order IMD | -160 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19 dB |
| Attenuation | 10 dB |
| Attenuation Tolerance | ±1.0 dB @ 698–2700 MHz | ±2.0 dB @ 555–698 MHz |
| Average Power, maximum | 100 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 2700 MHz |
| VSWR | 1.25 |
Environmental Specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 105 mm | 4.134 in |
|---|---|
| Width, packed | 135 mm | 5.315 in |
| Length, packed | 270 mm | 10.63 in |
| Weight, gross | 3.29 kg | 7.253 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
