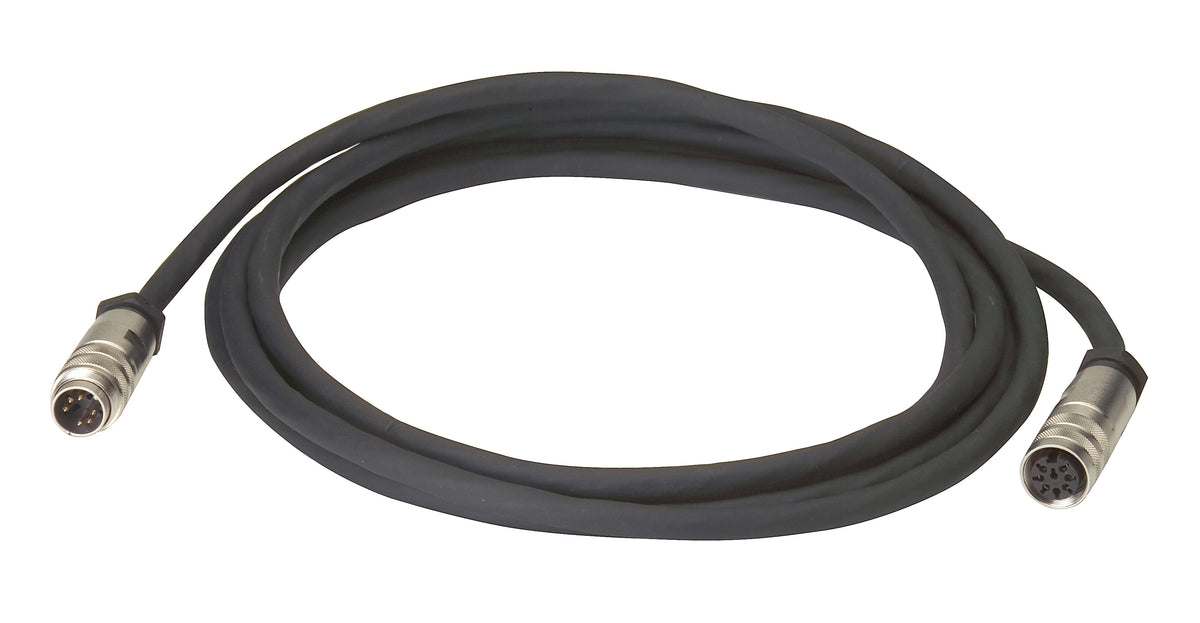

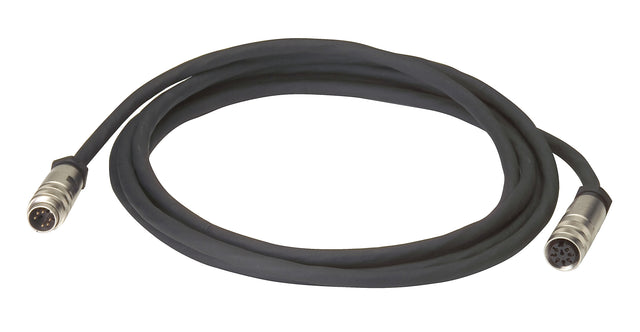

Commscope ATCB-B01-007 | AISG RET Control Cable, 7 m
Regular price
$127.96
Unit price
Brand: CommScope
|
SKU:
464699
Regular price
$127.96
Unit price
Description
Description
Commscope ATCB-B01-007 | AISG RET Control Cable, 7 m
Features and Benefits
- Feeds data and power to RET system components
- AISG and RoHS compliant
Specifications
Specifications
Product Classification
| Product Type | AISG standard cable |
|---|
General Specifications
| AISG Connector A | 8-pin DIN Female |
|---|---|
| AISG Connector A Body Style | Straight |
| AISG Connector A Standard | IEC 60130-9 |
| AISG Connector B | 8-pin DIN Male |
| AISG Connector B Body Style | Straight |
| AISG Connector B Standard | IEC 60130-9 |
| Color | Black |
| Data Conductor Type | 0.24 mm² (24 AWG) twisted pair |
| EU Certification | CB / CE |
| Power Conductor Type | 0.82 mm² (18 AWG) stranded |
| Total Conductors, quantity | 6 |
Dimensions
| Length | 7 m / 22.966 ft |
|---|---|
| Diameter Over Jacket | 8 mm / 0.315 in |
Electrical Specifications
| Protocol | AISG 1.1 / AISG 2.0 |
|---|---|
| Voltage, maximum | 300 V |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
Packaging and Weights
| Weight, net | 0.8 kg / 1.764 lb |
|---|
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
