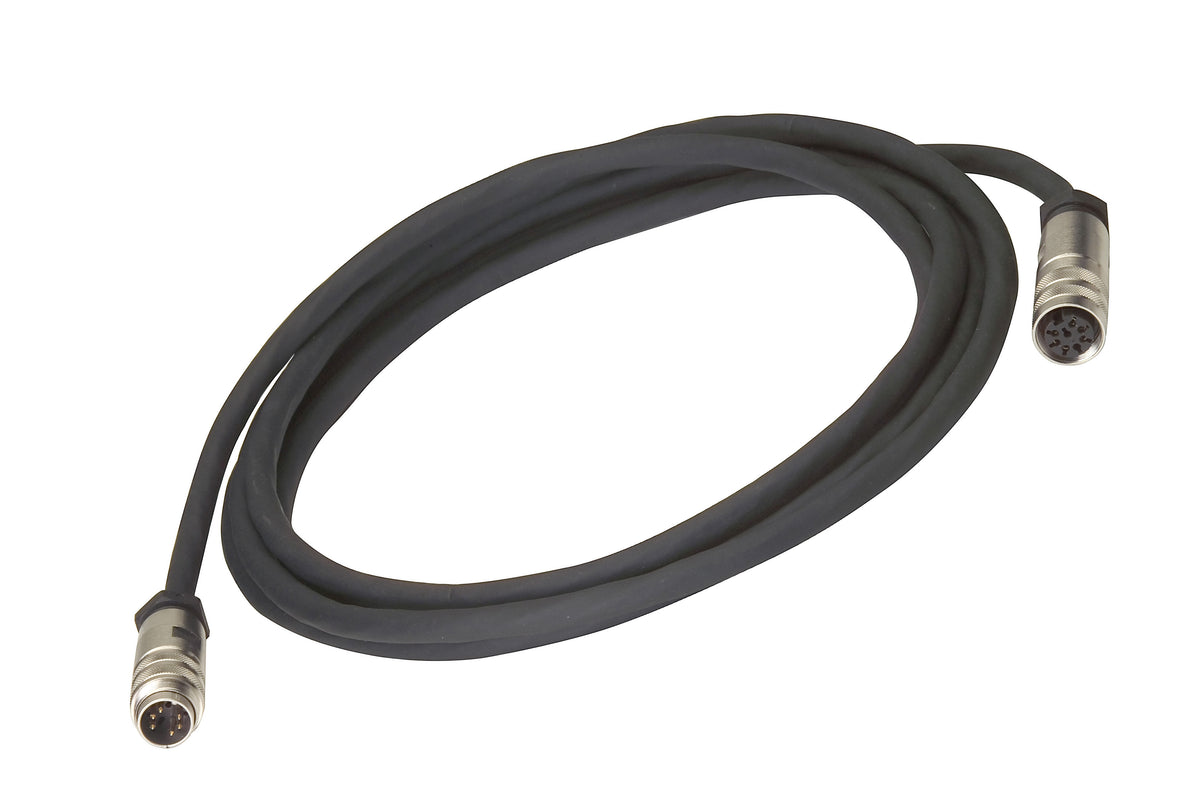

CommScope ATCB-B01-060 | AISG RET Control Cable, 60 m
Regular price
$431.03
Unit price
Brand: CommScope
|
SKU:
ATCB-B01-060
Regular price
$431.03
Unit price
Description
Description
CommScope ATCB-B01-060 | AISG RET Control Cable, 60 m
Specifications
Specifications
CommScope - ATCB-B01-060 - Product Categories
- Cable Assemblies
- RET Control Cable Assemblies
CommScope - ATCB-B01-060 - Product Classification
| Product Type | AISG standard cable |
|---|
CommScope - ATCB-B01-060 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | AISG RET Control Cable, 60 m |
| Model Number | ATCB-B01-060 |
| AISG Connector A | 8-pin DIN Female |
| AISG Connector A Body Style | Straight |
| AISG Connector A Standard | IEC 60130-9 |
| AISG Connector B | 8-pin DIN Male |
| AISG Connector B Body Style | Straight |
| AISG Connector B Standard | IEC 60130-9 |
| Color | Black |
| Data Conductor Type | 0.24 mm² (24 AWG) twisted pair |
| EU Certification | CB | CE |
| Power Conductor Type | 0.82 mm² (18 AWG) stranded |
| Total Conductors, quantity | 6 |
CommScope - ATCB-B01-060 - Additional Information
| Dimensions | - |
|---|---|
| Length | 60 m | 196.85 ft |
| Diameter Over Jacket | 8 mm | 0.315 in |
| Electrical Specifications | - |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, maximum | 300 V |
| Environmental Specifications | - |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 100% |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
| Packaging and Weights | - |
| Weight, net | 5.2 kg | 11.464 lb |
