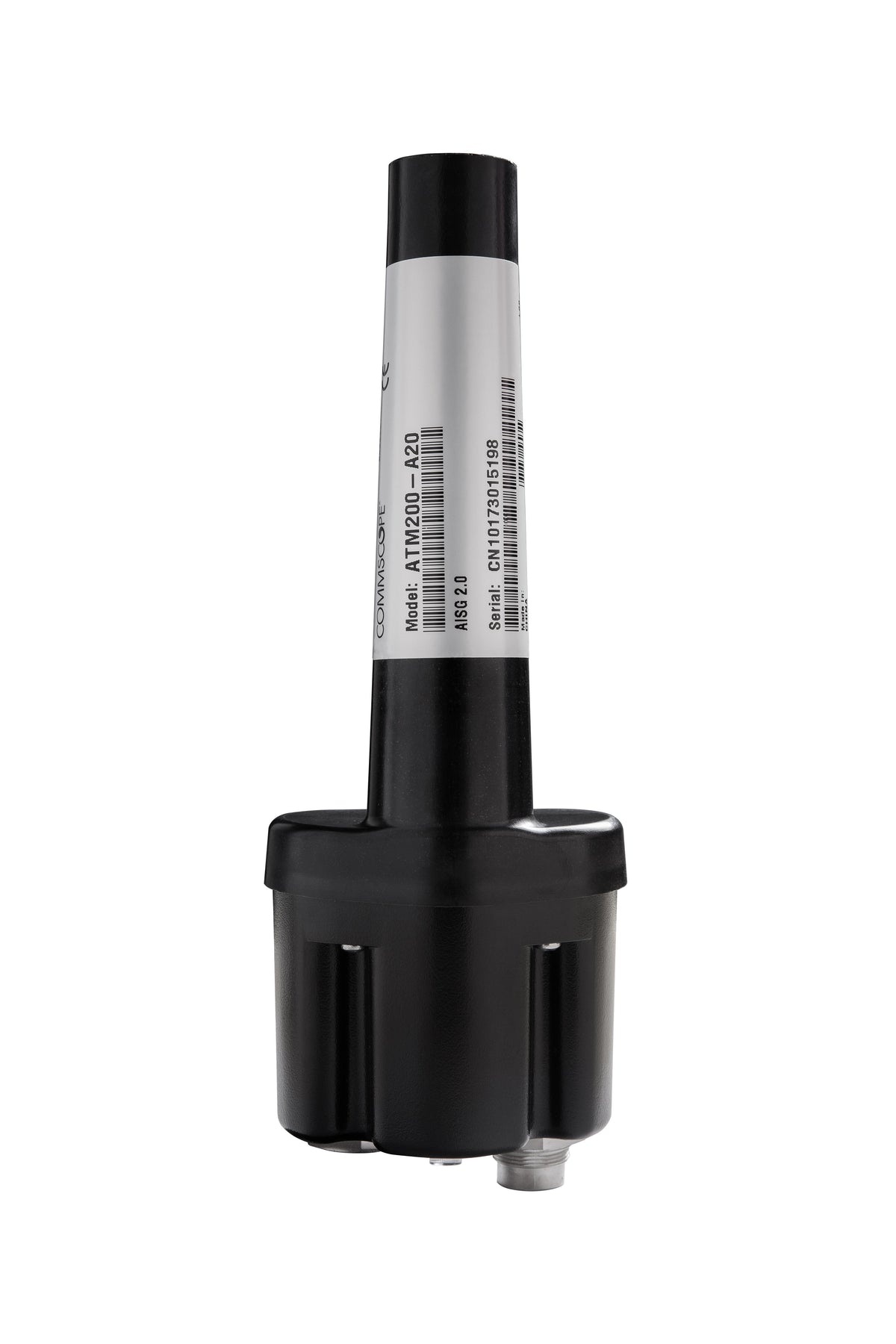

Commscope ATM200-A20 | Actuator, AISG 2.0 default protocol
Regular price
$668.99
Unit price
Brand: CommScope
|
SKU:
464717
Regular price
$668.99
Unit price
Description
Description
Commscope ATM200-A20 | Actuator, AISG 2.0 default protocol
Features and Benefits
- Connects to the base station antenna for remote electrical tilt
- Factory set to AISG 2.0 mode
- Can be field reset to AISG 1.1
- Absolute position sensor eliminates the need for calibration
- LED indicates tilt movement
Specifications
Specifications
Product Classification
| Product Type | RET actuator |
|---|
General Specifications
| AISG Input Connector | 8-pin DIN Male |
|---|---|
| AISG Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Color | Black |
| EU Certification | CE |
Dimensions
| Height | 203.2 mm / 8 in |
|---|---|
| Width | 71.1 mm / 2.799 in |
| Depth | 53.3 mm / 2.098 in |
Electrical Specifications
| Input Voltage | 10–30 Vdc |
|---|---|
| Adjustment Cycles, minimum | 10000 cycles |
| Adjustment Time, full range, maximum | 22 s |
| Default Protocol | AISG 2.0 |
| Electrical Safety Standard | EN 60950 / UL 60950 |
| Electromagnetic Compatibility (EMC) | CFR 47 Part 15, Subpart B, Class B / EN 55011 / EN 61326-1 / ETS 300 386 V1.3.2 2003 |
| Interface Protocol Signal | Data / dc |
| Lightning Surge Capability | 5 times @ -10 kA / 5 times @ 10 kA |
| Lightning Surge Capability Test Method | IEC 61000-4-5 |
| Lightning Surge Capability Waveform | 1.2/50 voltage and 8/20 current combination waveform |
| Lightning Surge Test Mode | Common mode |
| Protocol | AISG 1.1 / AISG 2.0 |
Material Specifications
| Material Type | ABS |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka / IEC 60068-2-52, Test Condition Kb |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP56 |
| Packaged Product Shock Test Method | ASTM D4169 / GR-63-CORE, Section 4.1.1 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
| Vibration Test Method | ASTM D4169 / IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 0.2 kg / 0.441 lb |
|---|
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
