Brand: CommScope
|
SKU:
503278

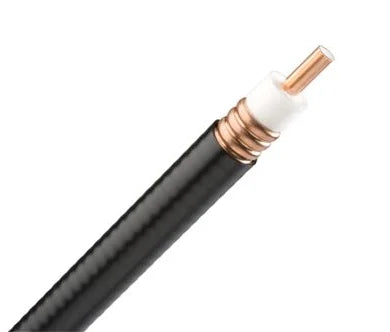

Commscope AVA5RK-50FX | AVA5RK-50FX, HELIAX Andrew Virtual Air Coaxial Cable, corrugated copper, 7/8 in, black, Non-halogenated, fire retardant polyolefin jacket B2ca- s1a, d2,a1 (CPR testing is conducted annually please reference the website for latest
Regular price
$8.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope AVA5RK-50FX | AVA5RK-50FX, HELIAX Andrew Virtual Air Coax...
Regular price
$8.74
Unit price
Description
Description
Commscope AVA5RK-50FX | AVA5RK-50FX, HELIAX Andrew Virtual Air Coaxial Cable, corrugated copper, 7/8 in, black, Non-halogenated, fire retardant polyolefin jacket B2ca- s1a, d2,a1 (CPR testing is conducted annually please reference the website for latest classification)
Specifications
Specifications
Product Classification
| Product Type | Coaxial wireless cable |
|---|---|
| Product Brand | HELIAX |
| Product Series | AVA5-50FX |
| Ordering Note | CommScope standard product in Asia Pacific / CommScope standard product in Europe, the Middle East, and Africa / Not available in the United States or Canada |
General Specifications
| Flexibility | Standard |
|---|---|
| Jacket Color | Black |
Dimensions
| Diameter Over Dielectric | 24.13 mm / 0.95 in |
|---|---|
| Diameter Over Jacket | 27.991 mm / 1.102 in |
| Inner Conductor OD | 9.4488 mm / 0.372 in |
| Outer Conductor OD | 25.4 mm / 1 in |
| Nominal Size | 7/8 in |
Electrical Specifications
| Cable Impedance | 50 ohm ±1 ohm |
|---|---|
| Capacitance | 73 pF/m / 22.25 pF/ft |
| dc Resistance, Inner Conductor | 2.888 ohms/km / 0.88 ohms/kft |
| dc Resistance, Outer Conductor | 1.53 ohms/km / 0.466 ohms/kft |
| dc Test Voltage | 6000 V |
| Inductance | 0.184 µH/m / 0.056 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 5000 MHz |
| Peak Power | 91 kW |
| Velocity | 0.9 |
Material Specifications
| Dielectric Material | Foam PE |
|---|---|
| Jacket Material | Non-halogenated, fire retardant polyolefin |
| Inner Conductor Material | Copper |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 254 mm / 10 in |
|---|---|
| Minimum Bend Radius, Single Bend | 127 mm / 5 in |
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 30 |
| Tensile Strength | 159 kg / 350.535 lb |
| Bending Moment | 19 N-m / 168.164 in lb |
| Flat Plate Crush Strength | 1.3 kg/mm / 72.797 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1b |
| EN50575 CPR Cable EuroClass Droplets Rating | d1 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Fire Retardancy Test Method | NFPA 130-2010 / UL 1666/CATVR/CMR |
| Smoke Index Test Method | IEC 61034 |
| Toxicity Index Test Method | IEC 60754-1 / IEC 60754-2 |
Packaging and Weights
| Cable weight | 0.48 kg/m / 0.323 lb/ft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UL/ETL Certification | CATVR/CMR |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
