Brand: CommScope | SKU: 464729

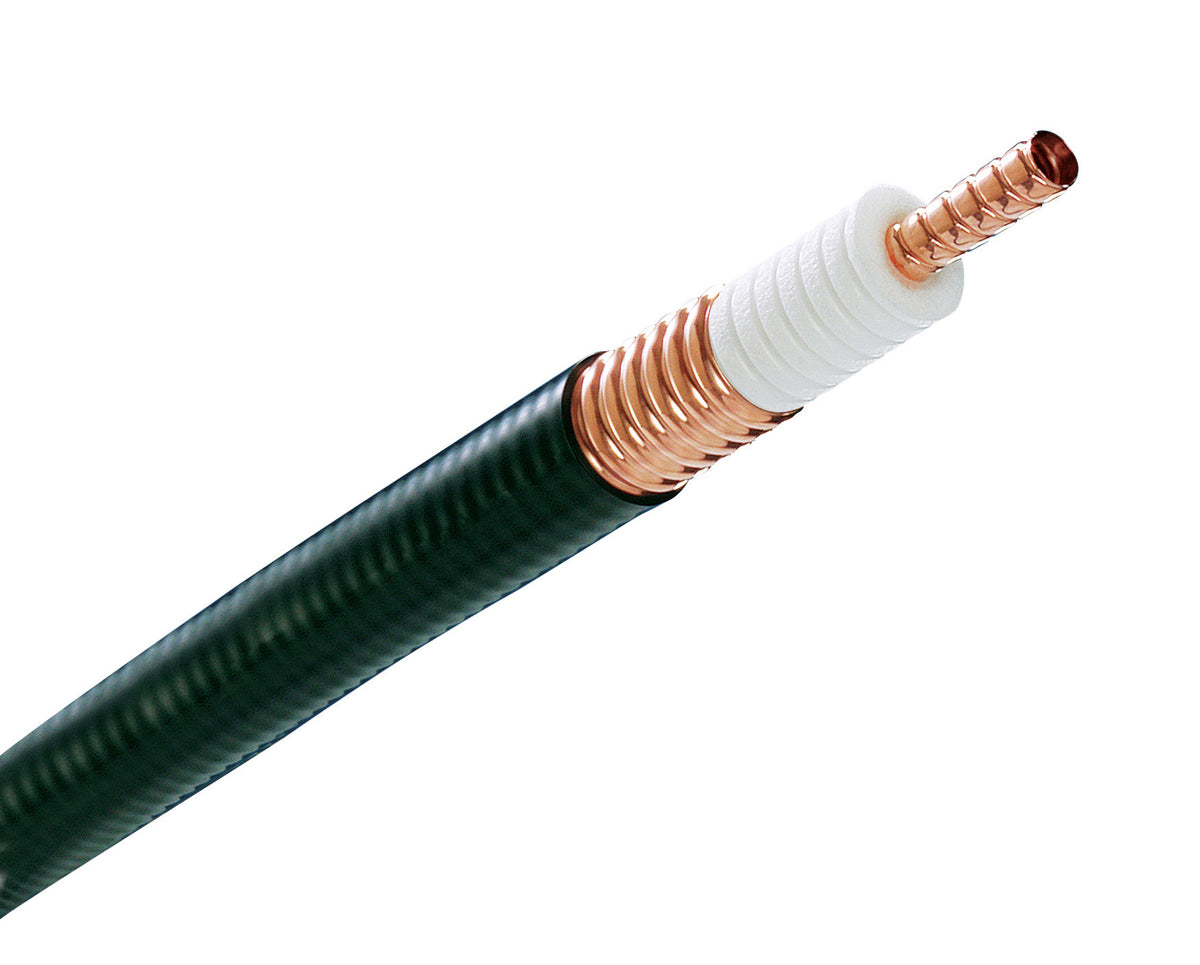

Commscope AVA7RK-50 | AVA7RK-50, HELIAX Andrew Virtual Air Coaxial Cable, corrugated copper, 1-5/8 in, black non-halogenated, fire retardant polyolefin jacket Cca-s2, d2, a1 (CPR testing is conducted annually please reference the website for latest class

$14.69

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope AVA7RK-50 | AVA7RK-50, HELIAX Andrew Virtual Air Coaxial Cable, corrugated copper, 1-5/8 in, black non-halogenated, fire retardant polyolefin jacket Cca-s2, d2, a1 (CPR testing is conducted annually please reference the website for latest classification)

Specifications

Product Classification

Product Type	Coaxial wireless cable
Product Brand	HELIAX
Product Series	AVA7-50
Ordering Note	CommScope standard product in Asia Pacific / CommScope standard product in Europe, the Middle East, and Africa

General Specifications

Flexibility	Standard
Jacket Color	Black

Dimensions

Diameter Over Dielectric	44.45 mm / 1.75 in
Diameter Over Jacket	51.054 mm / 2.01 in
Inner Conductor OD	18.161 mm / 0.715 in
Outer Conductor OD	46.355 mm / 1.825 in
Nominal Size	1-5/8 in

Electrical Specifications

Cable Impedance	50 ohm ±1 ohm
Capacitance	72.2 pF/m / 22.007 pF/ft
dc Resistance, Inner Conductor	1.435 ohms/km / 0.437 ohms/kft
dc Resistance, Outer Conductor	0.525 ohms/km / 0.16 ohms/kft
dc Test Voltage	15000 V
Inductance	0.187 µH/m / 0.057 µH/ft
Insulation Resistance	100000 MOhms-km
Jacket Spark Test Voltage (rms)	8000 V
Operating Frequency Band	1 – 2700 MHz
Peak Power	302 kW
Velocity	0.92

Material Specifications

Dielectric Material	Foam PE
Jacket Material	Non-halogenated, fire retardant polyolefin
Inner Conductor Material	Corrugated copper tube
Outer Conductor Material	Corrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends	381 mm / 15 in
Minimum Bend Radius, Single Bend	203.2 mm / 8 in
Number of Bends, minimum	15
Number of Bends, typical	50
Tensile Strength	181 kg / 399.036 lb
Bending Moment	47.5 N-m / 420.41 in lb
Flat Plate Crush Strength	1.6 kg/mm / 89.596 lb/in

Environmental Specifications

Installation temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Storage Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Attenuation, Ambient Temperature	20 °C / 68 °F
Average Power, Ambient Temperature	40 °C / 104 °F
Average Power, Inner Conductor Temperature	100 °C / 212 °F
EN50575 CPR Cable EuroClass Fire Performance	Cca
EN50575 CPR Cable EuroClass Smoke Rating	s2
EN50575 CPR Cable EuroClass Droplets Rating	d2
EN50575 CPR Cable EuroClass Acidity Rating	a1
Fire Retardancy Test Method	NFPA 130-2010 / UL 1666/CATVR
Smoke Index Test Method	IEC 61034
Toxicity Index Test Method	IEC 60754-1 / IEC 60754-2

Packaging and Weights

Cable weight	1.2 kg/m / 0.806 lb/ft

Regulatory Compliance/Certifications

CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UL/ETL Certification	CATVR
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
