Brand: CommScope
|
SKU:
MM15-COMC6U-09PK

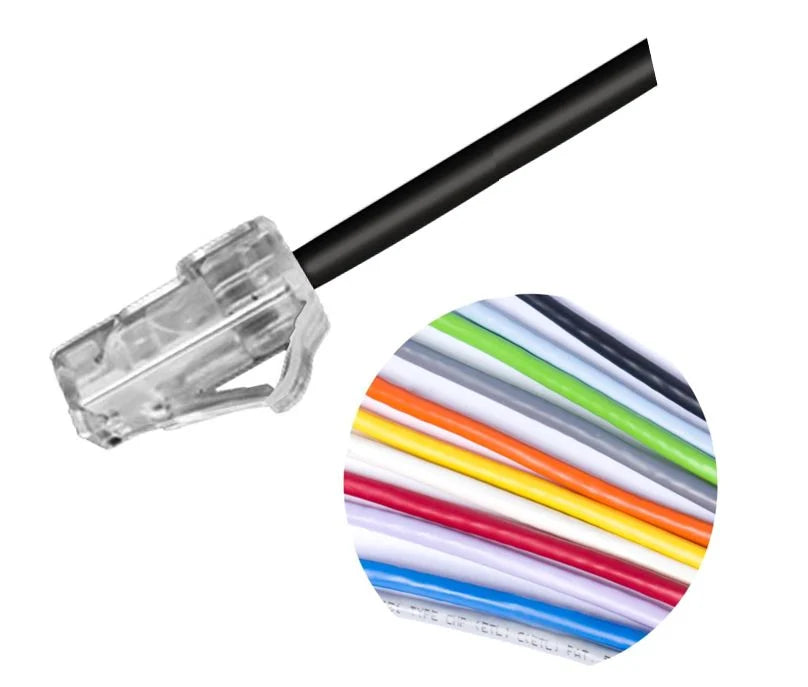

Commscope BO166S2-03F015 | Jacket Color - Dark Gray | Cord Length - 15 Ft
Regular price
$266.20
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope BO166S2-03F015 | Jacket Color - Dark Gray | Cord Length -...
Regular price
$266.20
Unit price
Brand: CommScope
|
SKU:
MM15-COMC6U-09PK
Regular price
$266.20
Unit price
Description
Description
Commscope BO166S2-03F015 | MiNo6 Series Category 6 Performance U/UTP Reduced Diameter LS-CM Dual Rated Patch Cord (Megapack of 10)
Features and Benefits
- Perfect for cross connects, workstations or racks with higher-density and/or limited space
- Small diameter unshielded twisted pair patch cords (0.15 inch/3.81 mm) that offers flexibility, durability and reliability
- Unique laminate barrier wrap provides excellent alien cross-talk performance
Specifications
Specifications
Wiring Diagram
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Twisted pair patch cord |
| Product Series | BO |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords / Cords 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 6 (except wire gauge) |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black / Blue / Dark gray / Light blue / Orange / Purple / Red / Spring green / Violet / White / Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 8 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 25 |
| Cable Assembly Length Range (cm) | 15 – 800 |
| Cable Assembly Length Range (in) | 6 – 300 |
| Diameter Over Jacket | 3.84 mm / 0.151 in |
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
|---|---|
| Safety Voltage Rating | 300 V |
Material Specifications
| Contact Plating Material | Precious metals |
|---|---|
| Material Type | Copper alloy / Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 90 N / 20.233 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Low Smoke Zero Halogen (LSZH) / Non-plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Packaging quantity | 10 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
