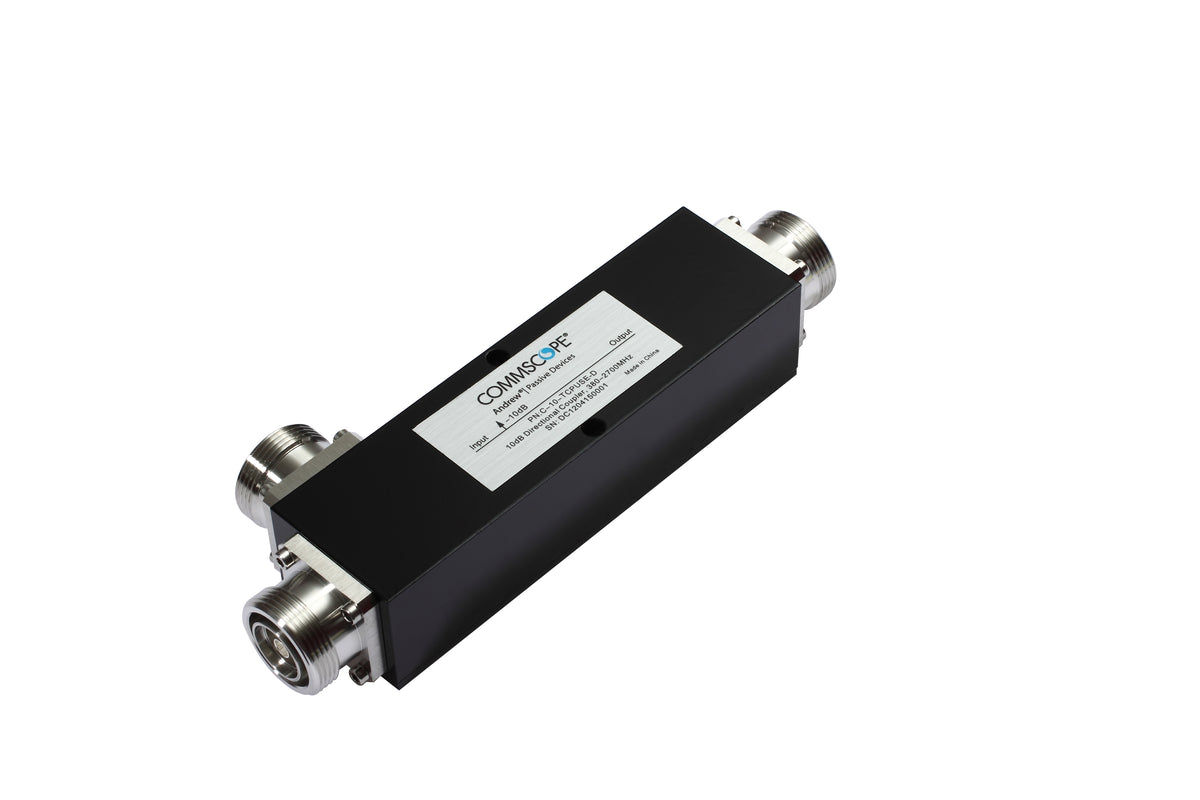

Commscope C-10-TCPUSE-D | 10 dB, Directional Coupler, 380–2700 MHz
Regular price
$331.05
Unit price
Brand: CommScope
|
SKU:
464810
Regular price
$331.05
Unit price
Description
Description
Commscope C-10-TCPUSE-D | 10 dB, Directional Coupler, 380–2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Directional coupler |
General Specifications
| Device Type | Coupler |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 36 mm / 1.417 in |
|---|---|
| Width | 66 mm / 2.598 in |
| Length | 194 mm / 7.638 in |
Electrical Specifications
| 3rd Order IMD | -140 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.8 dB/380–2700 MHz |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 55 mm / 2.165 in |
|---|---|
| Width, packed | 110 mm / 4.331 in |
| Length, packed | 200 mm / 7.874 in |
| Volume | 1210 cc / 73.839 in³ |
| Weight, gross | 0.95 kg / 2.094 lb |
| Weight, net | 0.89 kg / 1.962 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
