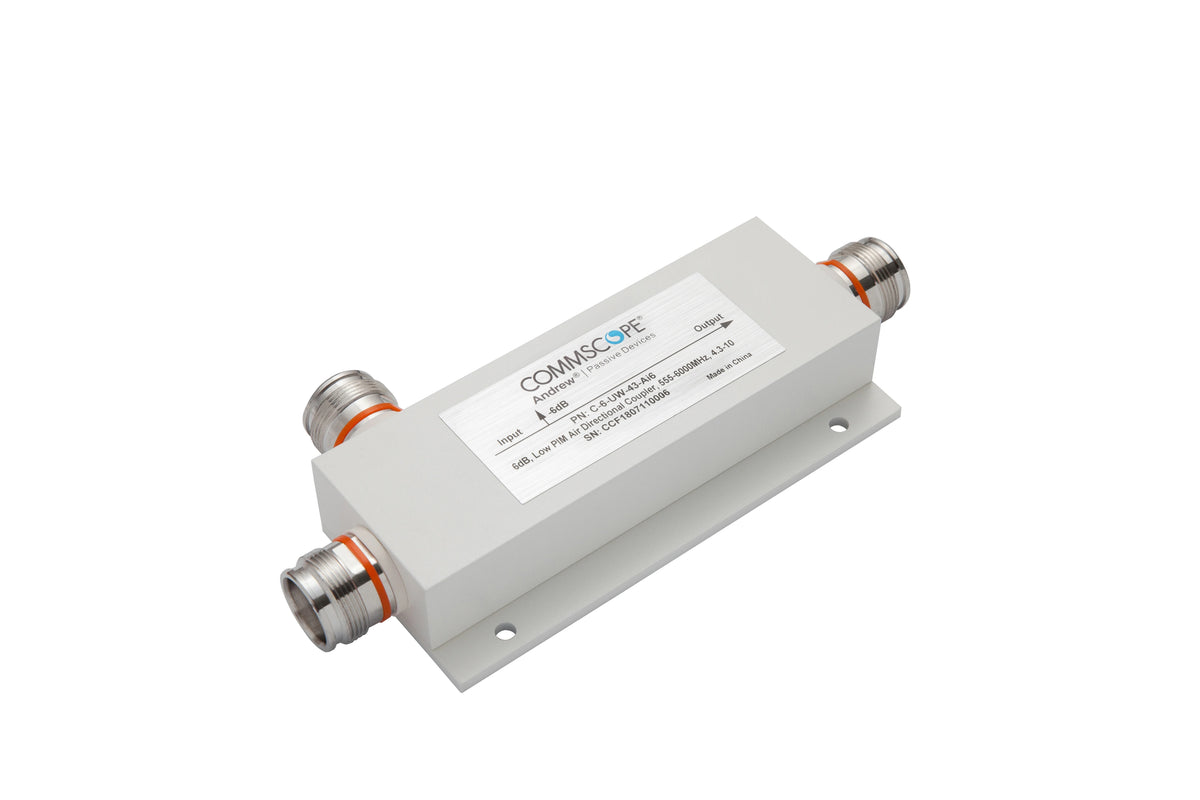

Commscope C-6-UW-43-AI6 | 6 dB, Air Directional Coupler, 555–6000 MHz
Regular price
$264.95
Unit price
Brand: CommScope
|
SKU:
9786656
Regular price
$264.95
Unit price
Description
Description
Commscope C-6-UW-43-AI6 | 6 dB, Air Directional Coupler, 555–6000 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Directional coupler |
General Specifications
| Device Type | Coupler |
|---|---|
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 23 mm / 0.906 in |
|---|---|
| Width | 70 mm / 2.756 in |
| Length | 156 mm / 6.142 in |
Electrical Specifications
| 3rd Order IMD | -165 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 1.8 dB/555–6000 MHz |
| Average Power, maximum | 300 W |
| Coupling | 6 dB |
| Coupling Tolerance | ±1.1dB |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 40 W |
Mechanical Specifications
| Coupling Nut Proof Torque | 7 N-m / 61.955 in lb |
|---|
Environmental Specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Height, packed | 45 mm / 1.772 in |
|---|---|
| Width, packed | 98 mm / 3.858 in |
| Length, packed | 180 mm / 7.087 in |
| Weight, gross | 0.42 kg / 0.926 lb |
| Weight, net | 0.36 kg / 0.794 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
