Commscope C2SGRIP | Support Hoisting Grip for 3/8 in CNT-400 cable
Regular price
$17.14
Unit price
Brand: CommScope
|
SKU:
465042
Regular price
$17.14
Unit price
Description
Description

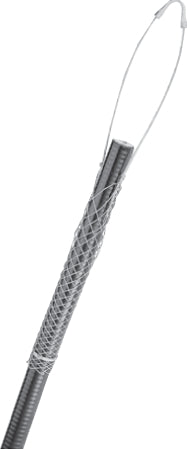

Commscope C2SGRIP | Support Hoisting Grip for 3/8 in CNT-400 cable
Specifications
Specifications
Product Classification
| Product Type | Hoisting grip |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Attachment Spacing Intervals | 60.96 m / 200 ft |
|---|---|
| Hoisting Grip Type | Support hoisting grip |
| Installation Tool | Required, not included |
| Support Clamp | Included |
| Tool Type | Hoisting grip |
Dimensions
| Grip Length, minimum | 101.6 mm / 4 in |
|---|---|
| Leader Length, minimum | 152.4 mm / 6 in |
| Nominal Size | 3/8 in |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Stainless steel / Tin-coated bronze |
|---|
Mechanical Specifications
| Pull Load Capacity | 158.757 kg / 350 lb |
|---|
Packaging and Weights
| Height, packed | 25.4 mm / 1 in |
|---|---|
| Width, packed | 177.8 mm / 7 in |
| Length, packed | 127 mm / 5 in |
| Packaging quantity | 1 |
| Weight, gross | 0.3 kg / 0.661 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- HELIAX Coaxial Cable
- HELIAX Coaxial Cable 3, 4 , and 5 inch
- HELIAX Elliptical Waveguide
- Hoisting Grips for HELIAX Coaxial, Hybrid FiberFeed and Elliptical Waveguide
- Securing Coaxial Cable in a Monopole
- Support/Hoisting Grips for HELIAX Coaxial Cable
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
