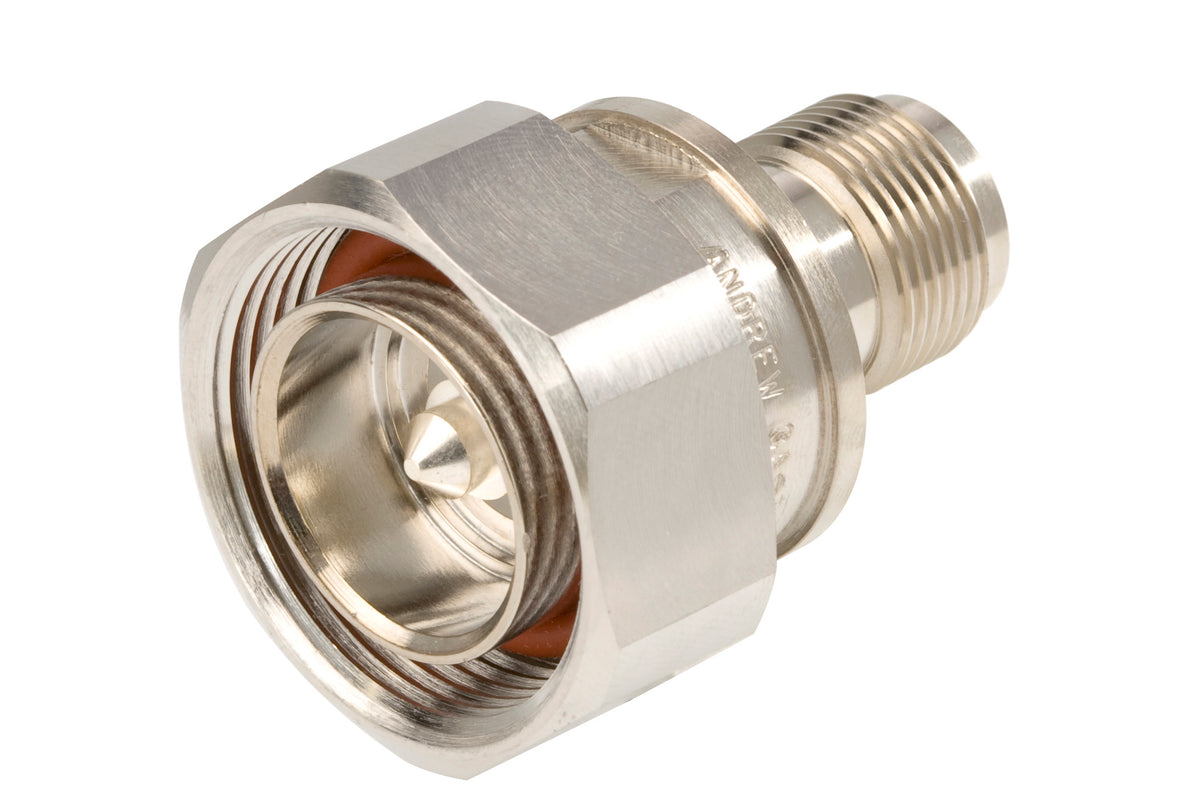

Commscope CA-TNFDM | Type N Female to 7-16 DIN Male Adapter
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Adapter |
|---|---|
| Ordering Note | CommScope standard product in Europe, the Middle East, and Africa |
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Plating | Silver |
| Interface | N Female |
| Interface 2 | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 22.35 mm / 0.88 in |
|---|---|
| Length | 47.23 mm / 1.859 in |
| Diameter | 22.35 mm / 0.88 in |
Electrical Specifications
| 3rd Order IMD at Frequency | 116 dBm/1800 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 600.0 W/900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.4 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Mechanical Specifications
| Coupling Nut Proof Torque | 35 N-m / 309.776 in lb |
|---|---|
| Coupling Nut Proof Torque Method | IEC 61169-4:17 |
| Coupling Nut Retention Force | 800 N / 179.847 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:15.2.6 |
| Insertion Force | 200 N / 44.962 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 / IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 122 g / 0.269 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
