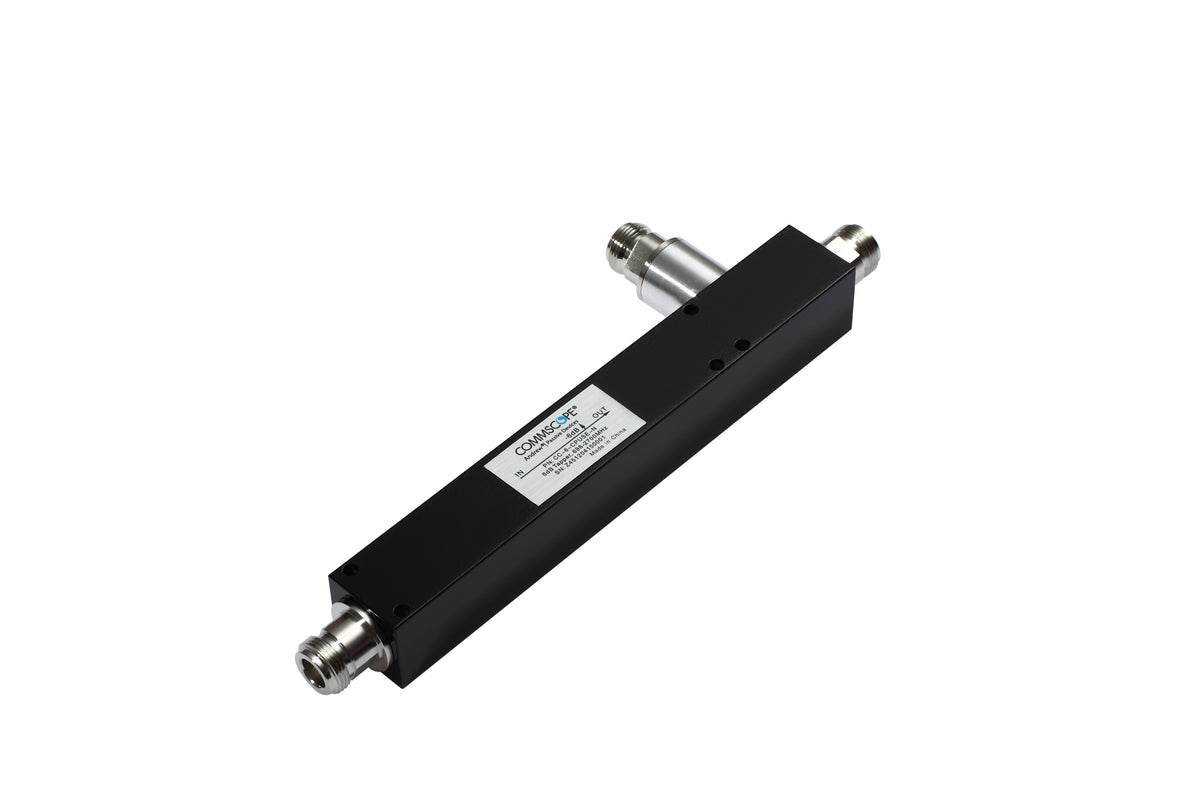

Commscope CC-6-CPUSE-N | 6 db, Tapper, 698–2700 MHz
Regular price
$147.24
Unit price
Brand: CommScope
|
SKU:
518433
Regular price
$147.24
Unit price
Description
Description
Commscope CC-6-CPUSE-N | 6 db, Tapper, 698–2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Tapper |
General Specifications
| Device Type | Tapper |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 25 mm / 0.984 in |
|---|---|
| Width | 63 mm / 2.48 in |
| Length | 210 mm / 8.268 in |
Electrical Specifications
| 3rd Order IMD | -150 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 43 mm / 1.693 in |
|---|---|
| Width, packed | 76 mm / 2.992 in |
| Length, packed | 258 mm / 10.157 in |
| Volume | 843100 mm³ / 51.449 in³ |
| Weight, gross | 0.44 kg / 0.97 lb |
| Weight, net | 0.35 kg / 0.772 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
