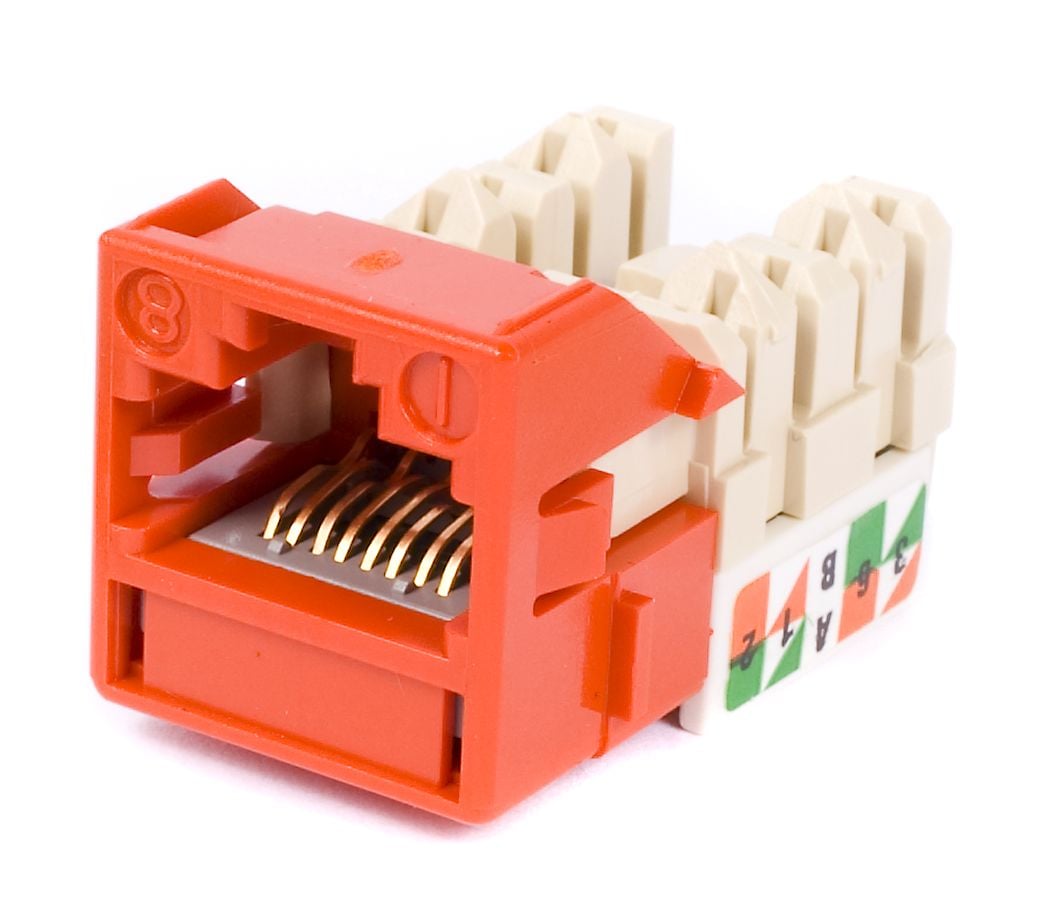

CommScope CC0020834/1 | M-Series Modular Jack, RJ45, Cat6 Unshielde...
Regular price
$14.69
Unit price
Brand: CommScope
|
SKU:
279883
Regular price
$14.69
Unit price
Description
Description
CommScope CC0020834/1 | M-Series Modular Jack, RJ45, Cat6 Unshielded, Orange
Specifications
Specifications
CommScope - CC0020834/1 - Product Categories
- Connectors
- RJ45 Jacks & Accessories
- Category 6 Jacks
CommScope - CC0020834/1 - Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Modular jack |
| Product Series | UNJ Series |
CommScope - CC0020834/1 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | M-Series Modular Jack, RJ45, Cat6 Unshielded, Orange |
| Model Number | CC0020834/1 | UNJ600T-OR |
| ANSI/TIA Category | 6 |
| Application | Universal design and label supports both T568 A and B wiring |
| Cable Type | Unshielded |
| Color | Orange |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | M Series faceplates, surface mount boxes, consolidation point boxes, or CommScope modular panels |
| Mounting Note | Can be mounted either at 90° (straight) or at 45° (angled) in any CommScope faceplate |
| Termination Type | IDC |
| Wiring | T568A | T568B |
CommScope - CC0020834/1 - Additional Information
| Dimensions | - |
|---|---|
| Height | 20.32 mm | 0.8 in |
| Width | 20.32 mm | 0.8 in |
| Depth | 30.48 mm | 1.2 in |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG | 23 AWG | 24 AWG |
| Electrical Specifications | - |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 MOhm |
| PoE Durability | Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles |
| Material Specifications | - |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | High-impact, flame retardant, thermoplastic |
| Termination Contact Plating | Nickel |
| Mechanical Specifications | - |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Plug to Jack Mating Cycles | Complies to IEC 60603-7 series |
