Brand: CommScope
|
SKU:
427108

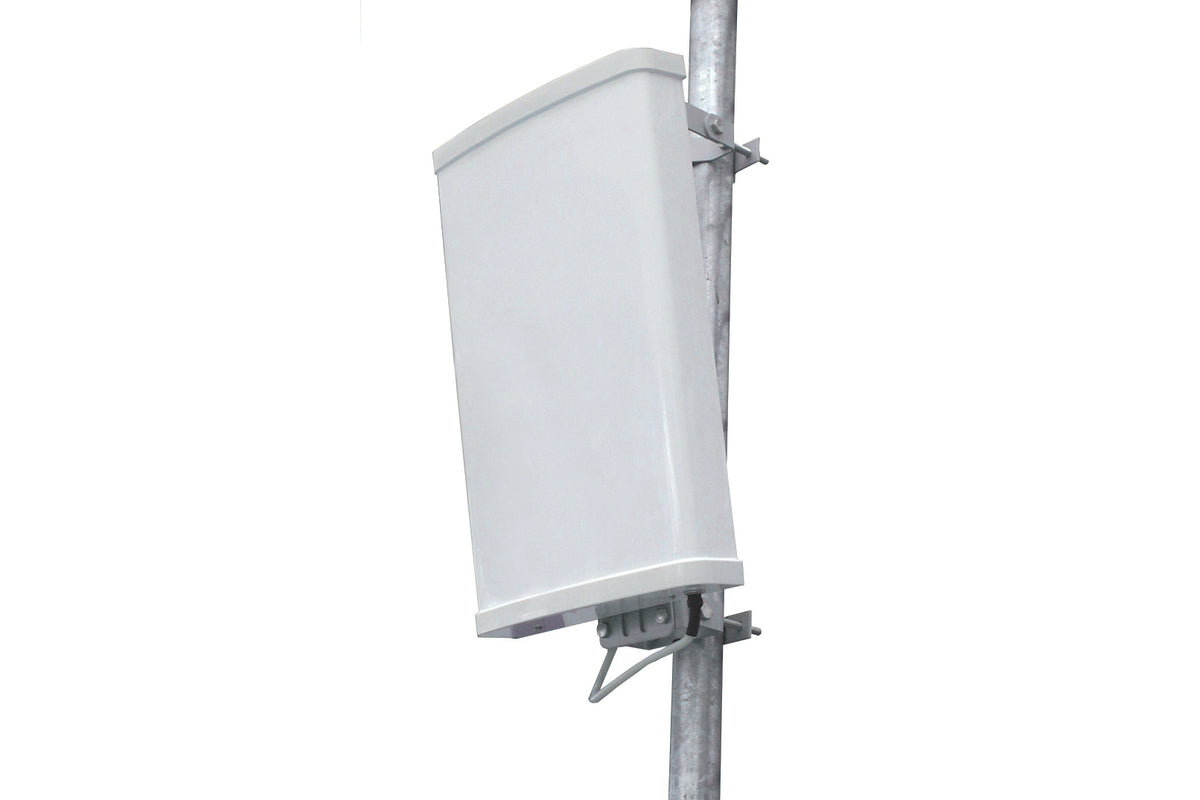

CommScope CELLMAX-EXT-CPU | Cell-Max Directional Outdoor Antenna, 806–960 MHz and 1710–2200 MHz
Regular price
$296.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CELLMAX-EXT-CPU | Cell-Max Directional Outdoor Antenna, 8...
Regular price
$296.47
Unit price
Description
Description
CommScope CELLMAX-EXT-CPU | Cell-Max Directional Outdoor Antenna, 806–960 MHz and 1710–2200 MHz
Specifications
Specifications
CommScope - CELLMAX-EXT-CPU - Product Categories
- Antennas
- In-Building Antennas & Components
- In-Building Antennas
CommScope - CELLMAX-EXT-CPU - Product Classification
| Product Type | Indoor/outdoor antenna |
|---|---|
| Product Brand | Cell-Max |
CommScope - CELLMAX-EXT-CPU - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Cell-Max Directional Outdoor Antenna, 806–960 MHz and 1710–2200 MHz |
| Model Number | CELLMAX-EXT-CPU |
| Application | Outdoor |
| Antenna Type | Directional |
| Polarization | Vertical |
| Color | White |
| Mounting | Poles between 25–60 mm with supplied clamps |
| Radome Material | PVC, UV resistant |
CommScope - CELLMAX-EXT-CPU - Additional Information
| Dimensions | - |
|---|---|
| Width | 308 mm | 12.126 in |
| Depth | 76 mm | 2.992 in |
| Length | 480 mm | 18.898 in |
| Electrical Specifications | - |
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 806 – 960 MHz | 1710 – 2200 MHz |
| Electrical Specifications | - |
| Frequency Band, MHz | 806–960 |
| Gain, dBi | 10.5 |
| Beamwidth, Horizontal, degrees | 57 |
| Beamwidth, Vertical, degrees | 33 |
| VSWR | Return loss, dB | 1.8 | 10.9 |
| Input Power per Port, maximum, watts | 100 |
| Front-to-Back Ratio at 180°, dB | 18 |
| Electrical Specifications, BASTA | - |
| Frequency Band, MHz | 806–960 |
| Beamwidth, Horizontal Tolerance, degrees | ±6.5 |
| Beamwidth, Vertical Tolerance, degrees | ±4.0 |
