Brand: CommScope
|
SKU:
CELLMAX-O-43I

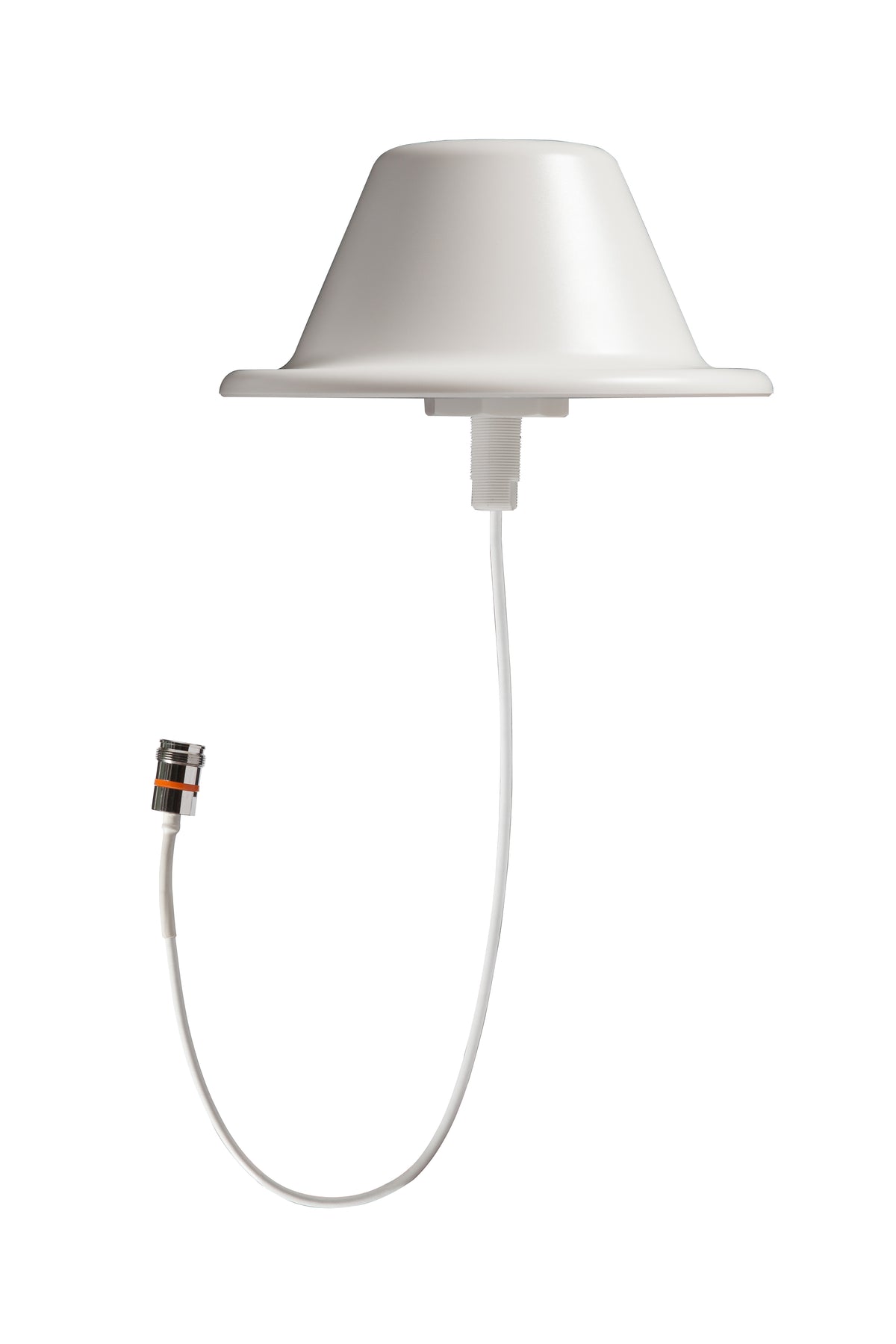

Commscope CELLMAX-O-43I | Cell-Max Omni In-building Antenna, 698–960 MHz and 1710–2700 MHz, 4.3-10
Regular price
$67.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CELLMAX-O-43I | Cell-Max Omni In-building Antenna, 698–96...
Regular price
$67.08
Unit price
Brand: CommScope
|
SKU:
CELLMAX-O-43I
Regular price
$67.08
Unit price
Shipping calculated at checkout.
Description
Description
Cell-Max Omni In-building Antenna, 698–960 MHz and 1710–2700 MHz, 4.3-10
Specifications
Specifications
Product Classification
| Product Type | In-building antenna |
|---|---|
| Product Brand | Cell-Max |
General Specifications
| Application | Indoor |
|---|---|
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
Dimensions
| Height | 85 mm | 3.346 in |
|---|---|
| Pigtail Length | 500 mm | 19.685 in |
| Outer Diameter | 186 mm | 7.323 in |
Electrical Specifications
| Electrical Note | PIM specifications are less than or equal to the stated value |
|---|---|
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2700 MHz |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Gain, dBi | 2 |
| Beamwidth, Horizontal, degrees | 360 |
| VSWR | Return loss, dB | 1.7 | 11.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -140 |
Electrical Specifications
| Electrical Note | PIM specifications are less than or equal to the stated value |
|---|---|
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2700 MHz |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Gain, dBi | 2 |
| Beamwidth, Horizontal, degrees | 360 |
| VSWR | Return loss, dB | 1.7 | 11.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -140 |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 100% |
Packaging and Weights
| Height, packed | 135 mm | 5.315 in |
|---|---|
| Width, packed | 195 mm | 7.677 in |
| Length, packed | 195 mm | 7.677 in |
