Brand: CommScope
|
SKU:
10122550

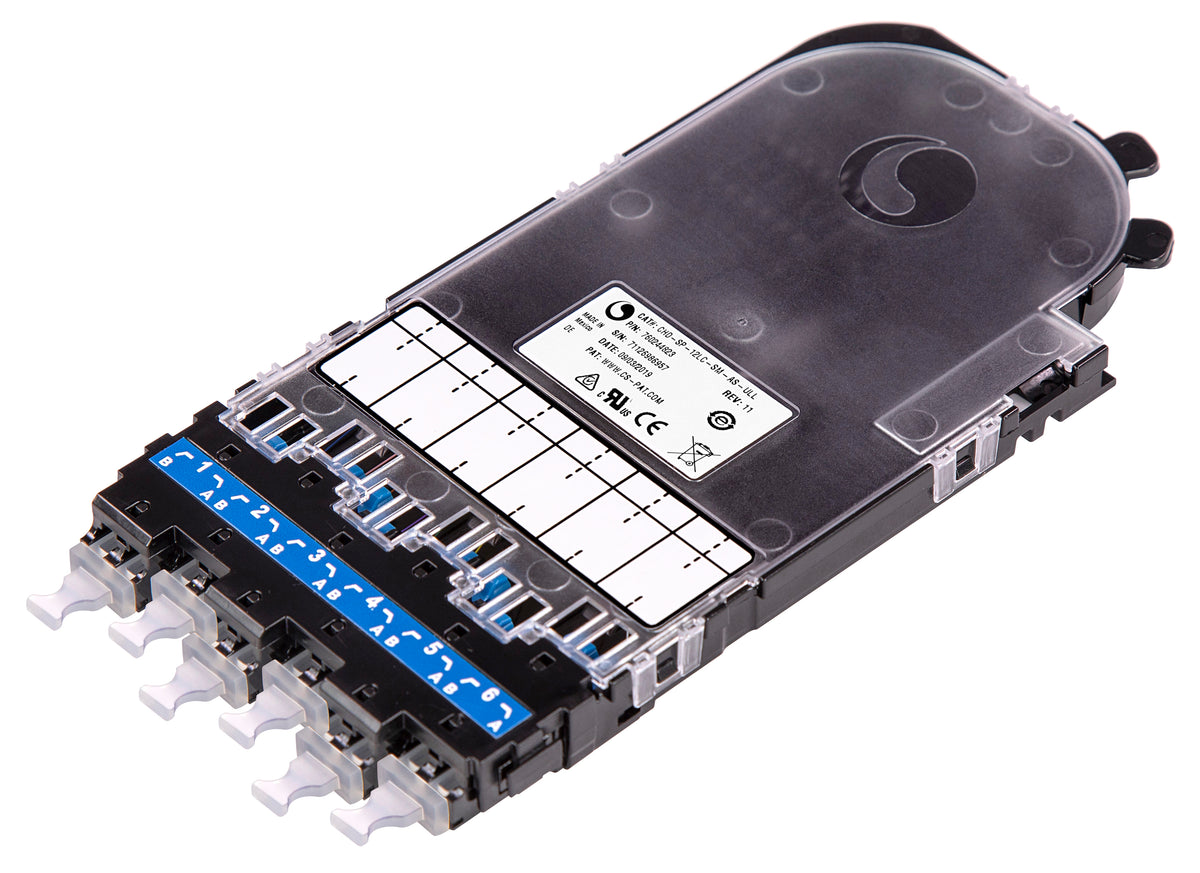

Commscope CHD-SP-12LC-SM-AS-ULL | CHD ULL Singlemode Splice Cassette, 12LC, with dust plugs and pigtails
Regular price
$745.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CHD-SP-12LC-SM-AS-ULL | CHD ULL Singlemode Splice Cassett...
Regular price
$745.32
Unit price
Description
Description
Commscope CHD-SP-12LC-SM-AS-ULL | CHD ULL Singlemode Splice Cassette, 12LC, with dust plugs and pigtails
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber cassette with pigtails |
| Product Brand | SYSTIMAX ULL |
| Product Series | CHD |
General Specifications
| Color, front | Blue |
|---|---|
| Interface, front | LC |
| Polarity | Method A / Pairs, straight |
| Shuttered | No |
| Total Fibers, quantity | 12 |
Dimensions
| Height | 12.446 mm / 0.49 in |
|---|---|
| Width | 83.82 mm / 3.3 in |
| Depth | 184.658 mm / 7.27 in |
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2 |
| Insertion Loss, maximum | 0.25 dB |
Environmental Specifications
| Qualification Standards | IEC 61753-1 / TIA-568.3-D |
|---|---|
| Safety Standard | CE / CSA / UL |
Packaging and Weights
| Included | Single Fusion Splice Protection Sleeves |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 0.095 kg / 0.21 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| RCM | Compliant to electrical safety, EMC, EME & telecommunications requirements |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- EHD/CHD Stranded Fiber Splice and Field-Terminated Cassettes
- TC-96237-IP Enhanced High Density (EHD) Splice Cassette Wiring Diagram
- TC-96275-IP Single Fiber Splice Cassette for CHD Panel
- Statement of Compliance RoHS/REACH
- 760244823 Product specifications
- 760244823 Product specifications (Comprehensive)
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Visio Stencil Resources
