Commscope CM-30D-B | Chain Mount Base Kit, 8 ft chain
Regular price
$570.94
Unit price
Brand: CommScope
|
SKU:
465165
Regular price
$570.94
Unit price
Description
Description

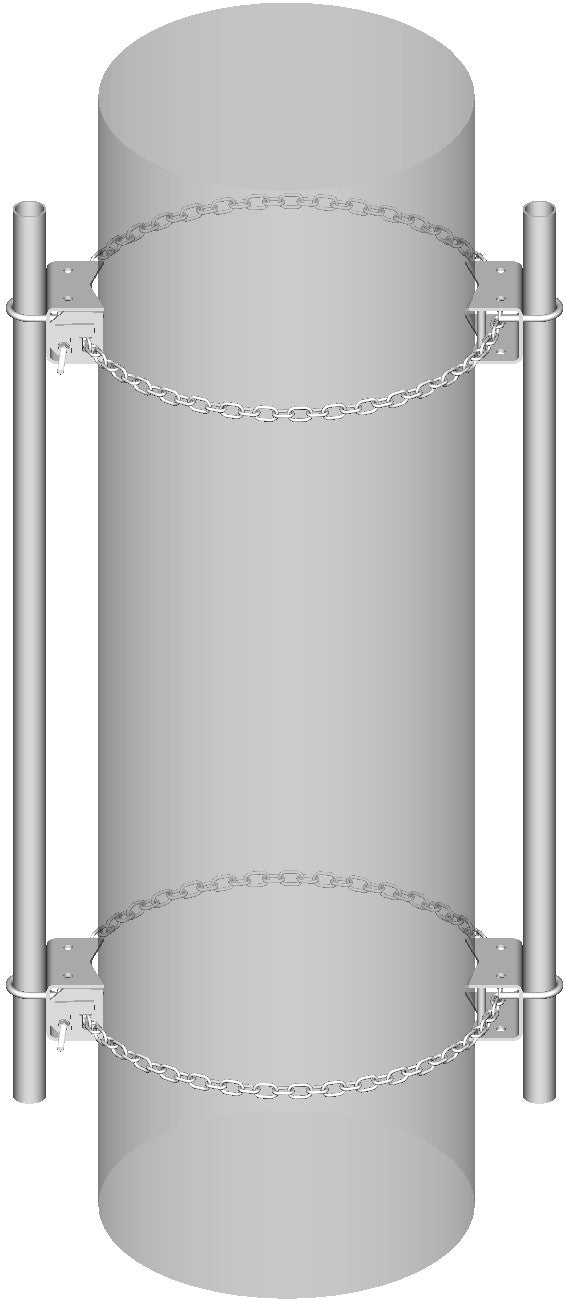

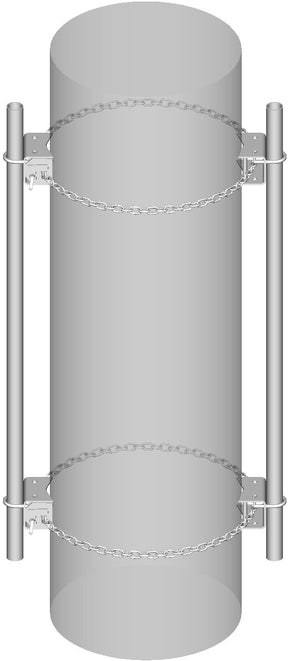

Commscope CM-30D-B | Chain Mount Base Kit, 8 ft chain
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Chain mount kit |
|---|
General Specifications
| Pipe, quantity | 0 |
|---|---|
| Sectors, quantity | 2 |
Dimensions
| Height | 152.4 mm / 6 in |
|---|---|
| Width | 203.2 mm / 8 in |
| Length | 203.2 mm / 8 in |
| Pipe Outer Diameter | 60.96 mm / 2.4 in |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
|---|---|
| Wind Rating Criteria | One 96 in x 10 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Environmental Specifications
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
|---|
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Weight, net | 17.6 kg / 38.801 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
