Brand: CommScope
|
SKU:
810903

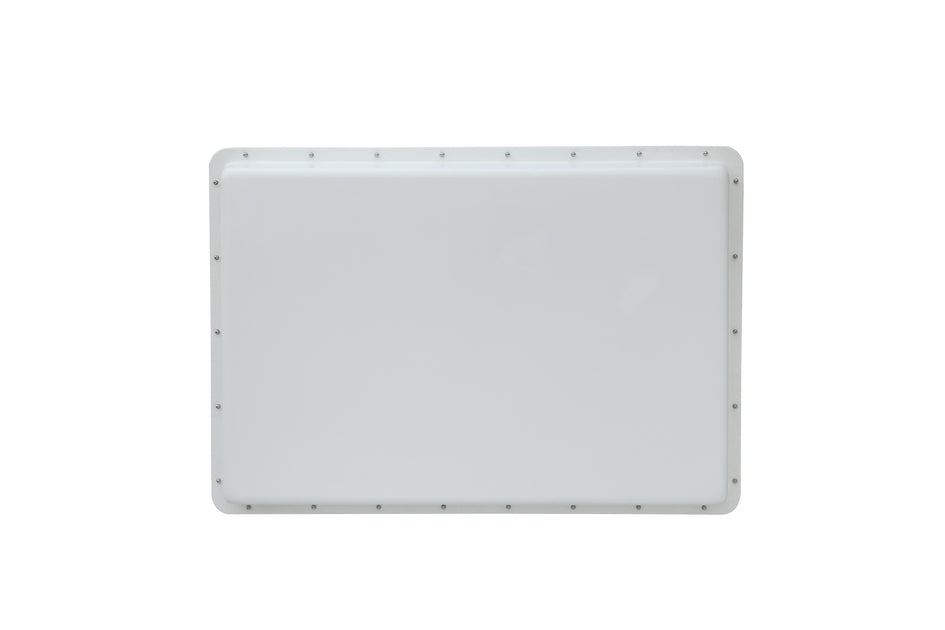

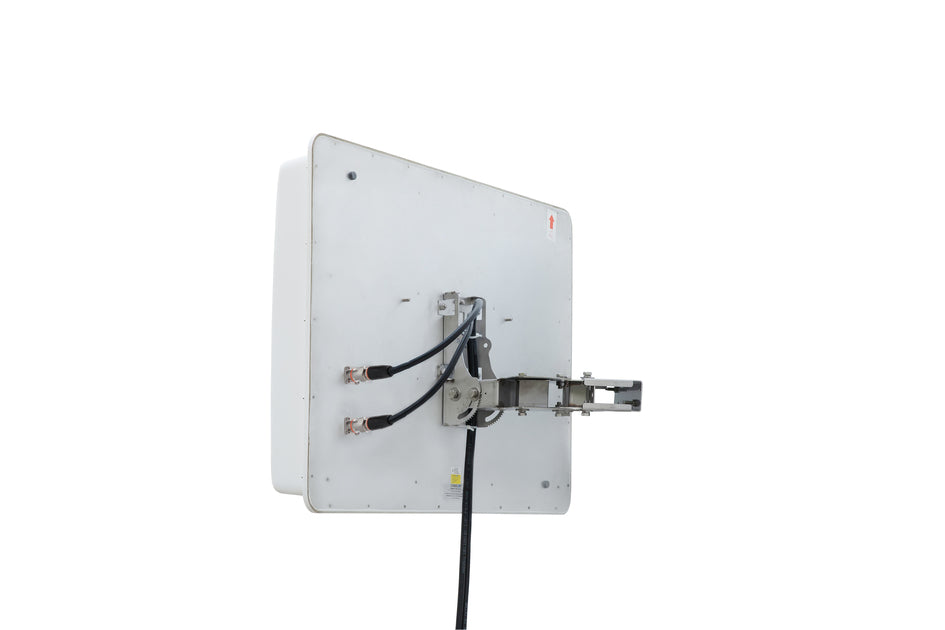

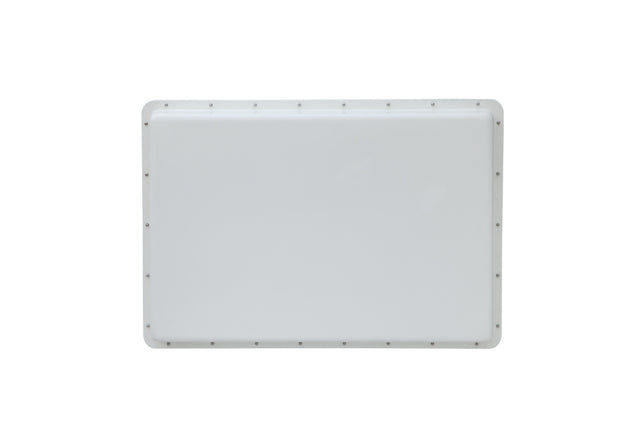

Commscope CMAX-3030-43V53 | Cell-Max Low PIM Directional High Capacity Venue MIMO Antenna, 698–960 MHz and 1710–2700 MHz, 30-Deg, 4.30-10
Regular price
$2,826.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CMAX-3030-43V53 | Cell-Max Low PIM Directional High Capac...
Regular price
$2,826.99
Unit price
Description
Description
Commscope CMAX-3030-43V53 | Cell-Max Low PIM Directional High Capacity Venue MIMO Antenna, 698–960 MHz and 1710–2700 MHz, 30-Deg, 4.30-10
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Indoor/outdoor antenna |
|---|---|
| Product Brand | Cell-Max |
General Specifications
| Application | Indoor/Outdoor |
|---|---|
| Antenna Type | Directional |
| Polarization | ±45° |
| Color | White |
| Number of Ports | 2 |
| Radome Material | Fiberglass, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 740 mm / 29.134 in |
|---|---|
| Depth | 167 mm / 6.575 in |
| Length | 1060 mm / 41.732 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Lightning Protection | dc Ground |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 2,128.0 N/216 km/h / 478.4 lbf/216 km/h |
|---|---|
| Wind Speed, maximum | 216 km/h / 134.216 mph |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Vibration Test Method | ASTM D4169 / IEC 60068-2-6 |
Packaging and Weights
| Width, packed | 814 mm / 32.047 in |
|---|---|
| Depth, packed | 247 mm / 9.724 in |
| Length, packed | 1424 mm / 56.063 in |
| Included | Mounting bracket |
| Net Weight, with mounting kit | 26 kg / 57.32 lb |
| Packaging quantity | 1 |
| Weight, gross | 38 kg / 83.776 lb |
| Weight, net | 20 kg / 44.092 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
