Brand: CommScope
|
SKU:
10041211

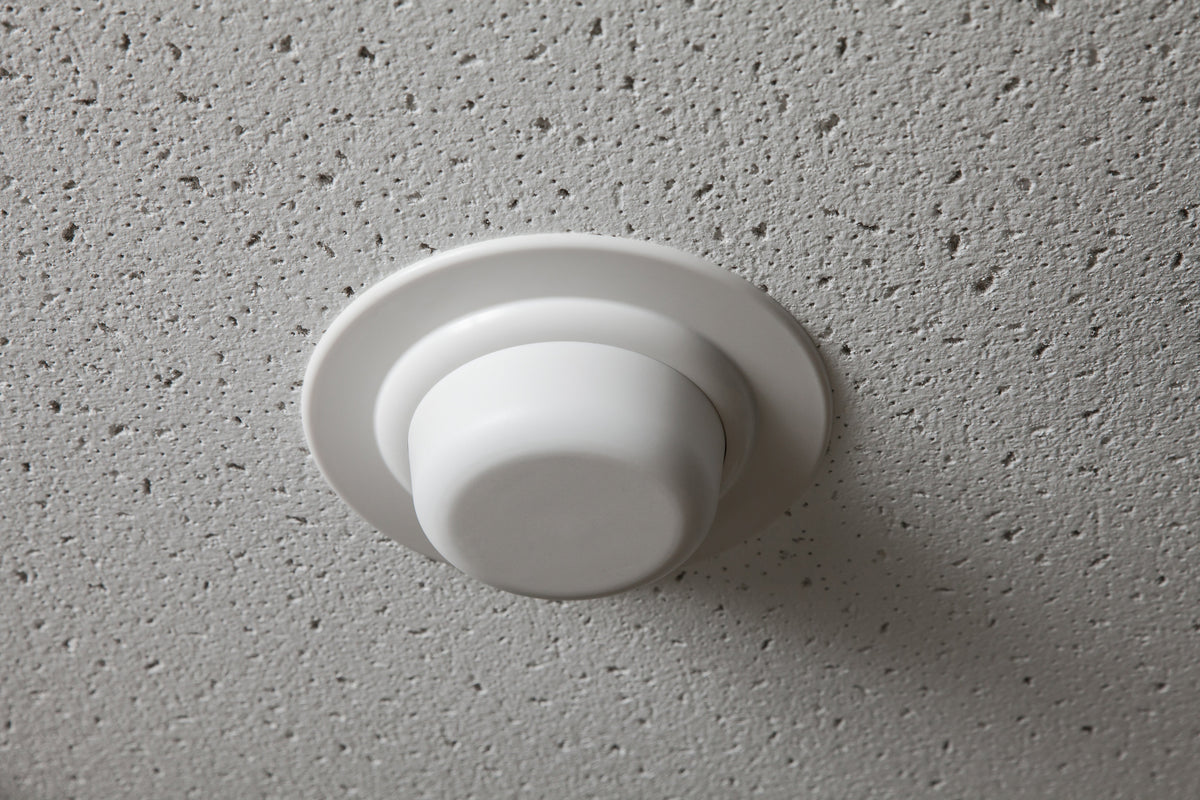

Commscope CMAXO43UWI53 | Cell-Max Low PIM Omni In-building Antenna, 617–6000 MHz (Recessed ceiling mount kit PN:7760591 sold separately)
Regular price
$101.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CMAXO43UWI53 | Cell-Max Low PIM Omni In-building Antenna,...
Regular price
$101.93
Unit price
Description
Description
Commscope CMAXO43UWI53 | Cell-Max Low PIM Omni In-building Antenna, 617–6000 MHz (Recessed ceiling mount kit PN:7760591 sold separately)
Specifications
Specifications
Product Classification
| Product Type | In-building antenna |
|---|---|
| Product Brand | Cell-Max |
General Specifications
| Application | Indoor |
|---|---|
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 82 mm / 3.228 in |
|---|---|
| Pigtail Length | 500 mm / 19.685 in |
| Outer Diameter | 206 mm / 8.11 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 100% |
Packaging and Weights
| Height, packed | 210 mm / 8.268 in |
|---|---|
| Width, packed | 190 mm / 7.48 in |
| Length, packed | 210 mm / 8.268 in |
| Packaging quantity | 1 |
| Weight, gross | 0.6 kg / 1.323 lb |
| Weight, net | 0.4 kg / 0.882 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
