Brand: CommScope
|
SKU:
10095637
Commscope CMAXOMF643UWI53 | Cell-Max Low PIM Omni MIMO In-building Antenna, 617-6000 MHz
Regular price
$132.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CMAXOMF643UWI53 | Cell-Max Low PIM Omni MIMO In-building ...
Regular price
$132.22
Unit price
Description
Description

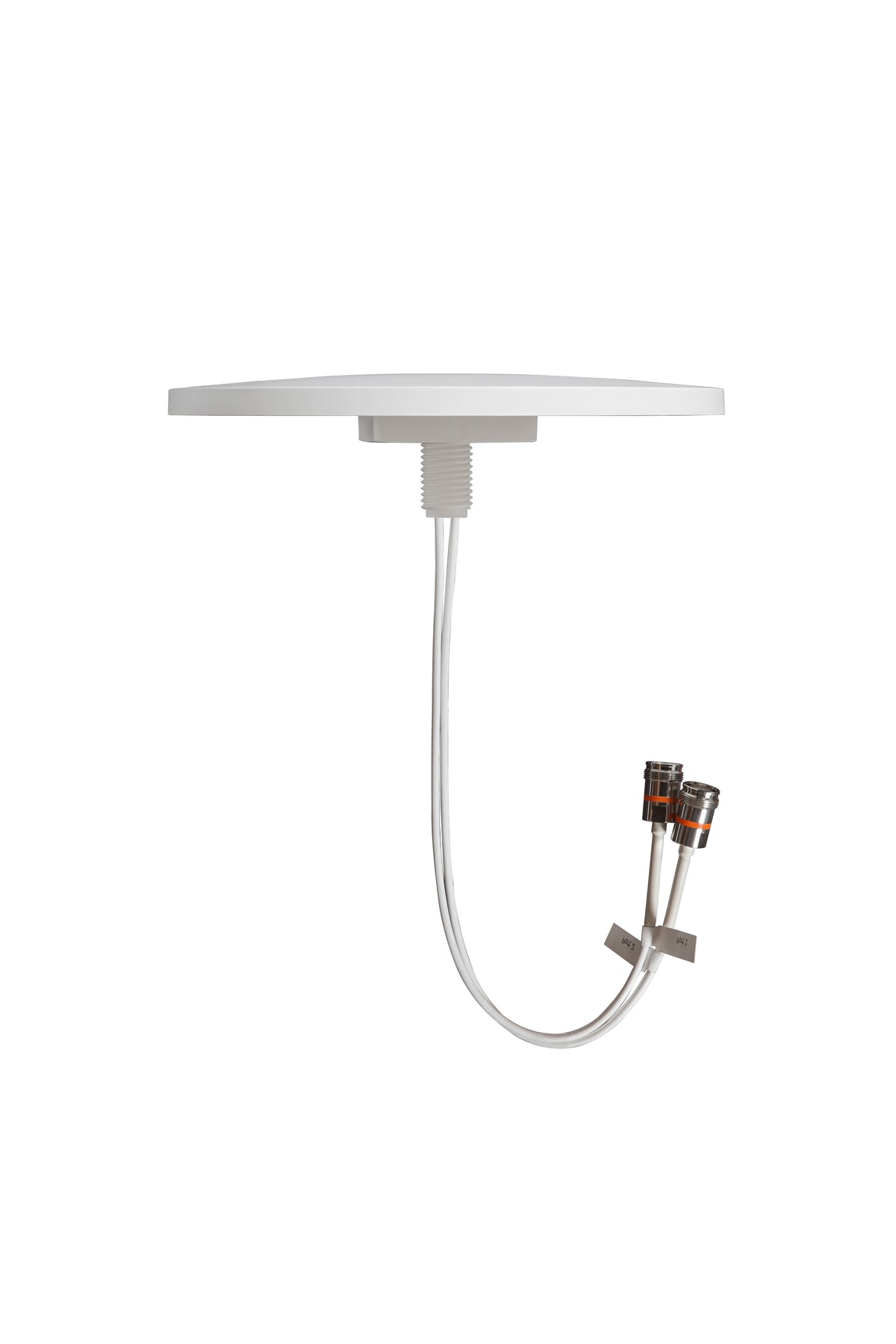

Commscope CMAXOMF643UWI53 | Cell-Max Low PIM Omni MIMO In-building Antenna, 617-6000 MHz
Specifications
Specifications
Product Classification
| Product Type | In-building antenna |
|---|---|
| Product Brand | Cell-Max |
General Specifications
| Application | Indoor |
|---|---|
| Antenna Type | Omni |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | Linear Horizontal |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
| Mounting Note | For antenna installation on metal ceilings, please contact your local CommScope representative |
| Number of Ports | 2 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 18 mm / 0.709 in |
|---|---|
| Pigtail Length | 500 mm / 19.685 in |
| Outer Diameter | 266 mm / 10.472 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 100% |
Packaging and Weights
| Width, packed | 278 mm / 10.945 in |
|---|---|
| Depth, packed | 102 mm / 4.016 in |
| Length, packed | 280 mm / 11.024 in |
| Weight, gross | 0.7 kg / 1.543 lb |
| Weight, net | 0.5 kg / 1.102 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
