Brand: CommScope
|
SKU:
CNT-195-FR

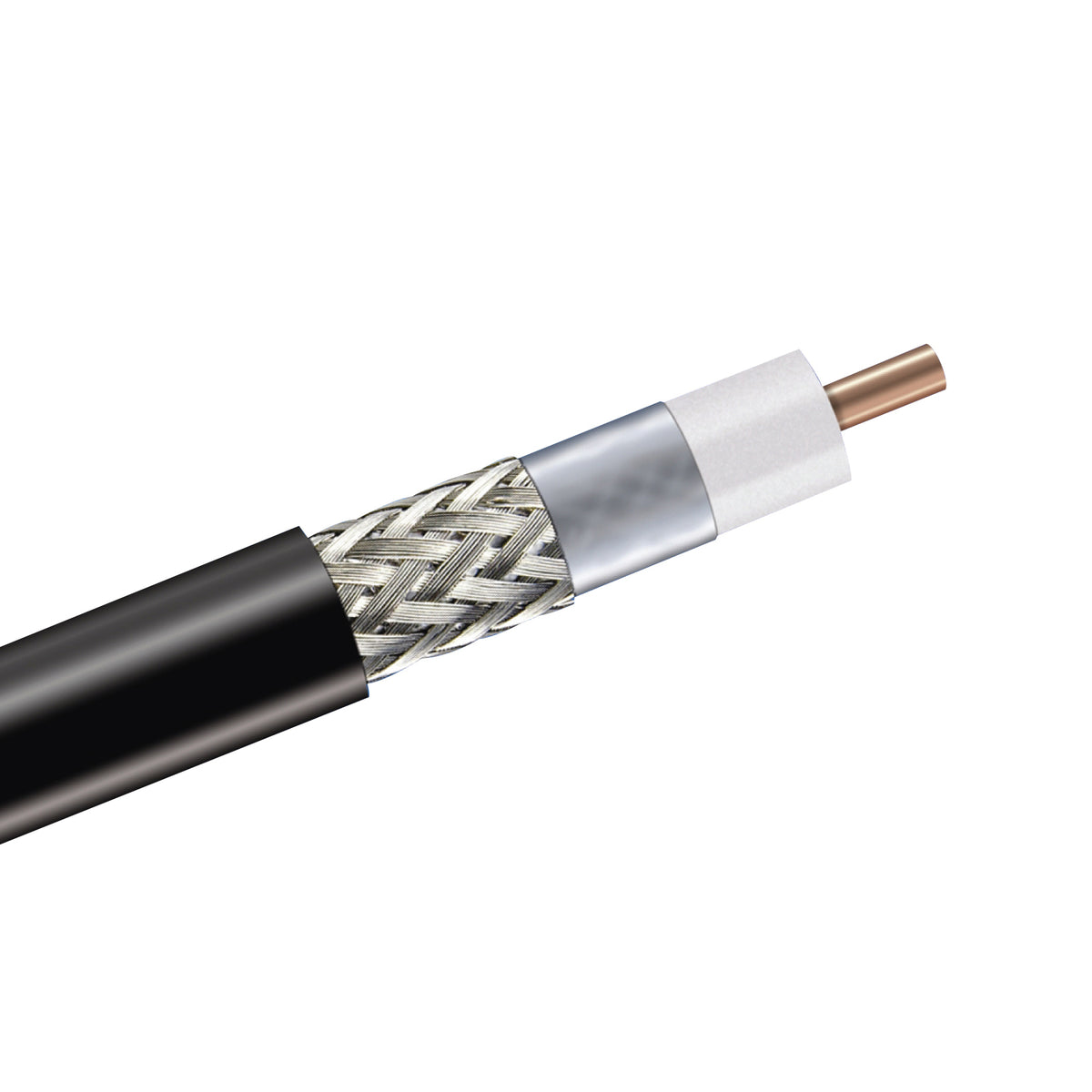

Commscope CNT-195-FR | CNT-195-FR, CNT 50 Ohm Braided Coaxial Cable, black non-halogenated, fire retardant polyolefin jacket, Dca s2 d2 Compliant
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CNT-195-FR | CNT-195-FR, CNT 50 Ohm Braided Coaxial Cable...
Regular price
$1.46
Unit price
Description
Description
Commscope CNT-195-FR | CNT-195-FR, CNT 50 Ohm Braided Coaxial Cable, black non-halogenated, fire retardant polyolefin jacket, Dca s2 d2 Compliant
Specifications
Specifications
Product Classification
| Product Type | Braided coaxial cable |
|---|---|
| Product Brand | CNT |
| Product Series | CNT-195 |
General Specifications
| Braid Coverage | 0.89 |
|---|---|
| Cable Type | CNT-195 |
| Jacket Color | Black |
Dimensions
| Diameter Over Dielectric | 2.79 mm / 0.11 in |
|---|---|
| Diameter Over Jacket | 4.95 mm / 0.195 in |
| Inner Conductor OD | 0.94 mm / 0.037 in |
| Outer Conductor OD | 3.5 mm / 0.138 in |
| Nominal Size | 0.195 in |
Electrical Specifications
| Cable Impedance | 50 ohm |
|---|---|
| Capacitance | 79.7 pF/m / 24.293 pF/ft |
| dc Resistance, Inner Conductor | 25.5 ohms/km / 7.772 ohms/kft |
| dc Resistance, Outer Conductor | 16.08 ohms/km / 4.901 ohms/kft |
| dc Test Voltage | 1500 V |
| Jacket Spark Test Voltage (rms) | 3000 V |
| Maximum Frequency | 37.9 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 2.5 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 0.75 |
Material Specifications
| Braid Material | Tinned copper |
|---|---|
| Dielectric Material | Foam PE |
| Jacket Material | Non-halogenated, fire retardant polyolefin |
| Inner Conductor Material | Copper |
| Shield Tape Material | Aluminum |
Mechanical Specifications
| Minimum Bend Radius, Single Bend | 12.7 mm / 0.5 in |
|---|---|
| Tensile Strength | 18 kg / 39.683 lb |
| Bending Moment | 0.3 N-m / 2.655 in lb |
| Flat Plate Crush Strength | 0.3 kg/mm / 16.799 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
| EN50575 CPR Cable EuroClass Smoke Rating | s2 |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| Smoke Index Test Method | IEC 61034 |
| Toxicity Index Test Method | IEC 60754-2 |
Packaging and Weights
| Cable weight | 0.03 kg/m / 0.020 lb/ft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
