Brand: CommScope
|
SKU:
518660

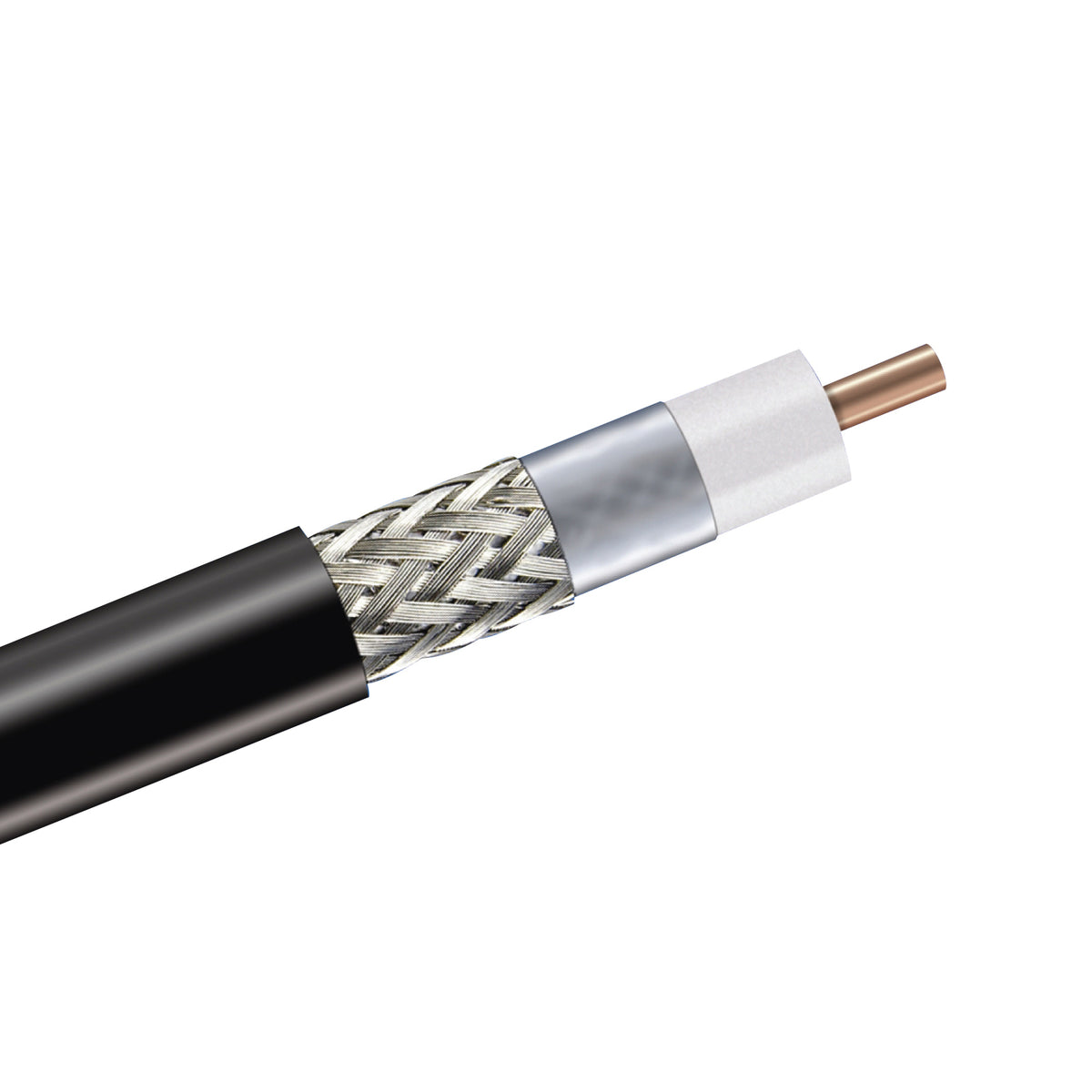

Commscope CNT-240-FR-150M | CNT-240-FR, CNT 50 Ohm Braided Coaxial Cable, 150 m, black non-halogenated, fire retardant polyolefin jacket
Regular price
$446.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CNT-240-FR-150M | CNT-240-FR, CNT 50 Ohm Braided Coaxial ...
Regular price
$446.13
Unit price
Description
Description
Commscope CNT-240-FR-150M | CNT-240-FR, CNT 50 Ohm Braided Coaxial Cable, 150 m, black non-halogenated, fire retardant polyolefin jacket
Specifications
Specifications
Product Classification
| Product Type | Braided coaxial cable |
|---|---|
| Product Brand | CNT |
| Product Series | CNT-240 |
General Specifications
| Braid Coverage | 0.9 |
|---|---|
| Cable Type | CNT-240 |
| Jacket Color | Black |
Dimensions
| Cable Length | 150 m / 492.126 ft |
|---|---|
| Reel Flange | 280 mm / 11.024 in |
| Reel Hub | 127 mm / 5 in |
| Reel Traverse | 210 mm / 8.268 in |
| Diameter Over Dielectric | 3.81 mm / 0.15 in |
| Diameter Over Jacket | 6.1 mm / 0.24 in |
| Diameter Over Tape | 3.987 mm / 0.157 in |
| Inner Conductor OD | 1.42 mm / 0.056 in |
| Outer Conductor OD | 4.52 mm / 0.178 in |
| Nominal Size | 0.240 in |
Electrical Specifications
| Cable Impedance | 50 ohm |
|---|---|
| Capacitance | 79.8 pF/m / 24.323 pF/ft |
| dc Resistance, Inner Conductor | 11.1 ohms/km / 3.383 ohms/kft |
| dc Resistance, Outer Conductor | 12.76 ohms/km / 3.889 ohms/kft |
| dc Test Voltage | 2500 V |
| Jacket Spark Test Voltage (rms) | 2500 V |
| Maximum Frequency | 31 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 5.6 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 0.83 |
Material Specifications
| Braid Material | Tinned copper |
|---|---|
| Dielectric Material | Foam PE |
| Jacket Material | Non-halogenated, fire retardant polyolefin |
| Inner Conductor Material | Copper |
| Shield Tape Material | Aluminum |
Mechanical Specifications
| Minimum Bend Radius, Single Bend | 19.05 mm / 0.75 in |
|---|---|
| Tensile Strength | 36 kg / 79.366 lb |
| Bending Moment | 0.3 N-m / 2.655 in lb |
| Flat Plate Crush Strength | 0.4 kg/mm / 22.399 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
| EN50575 CPR Cable EuroClass Smoke Rating | s2 |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| Smoke Index Test Method | IEC 61034 |
| Toxicity Index Test Method | IEC 60754-2 |
Packaging and Weights
| Cable weight | 0.05 kg/m / 0.034 lb/ft |
|---|---|
| Packaging Type | Reel |
| Weight, gross | 8.6 kg / 18.96 lb |
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
