Brand: CommScope
|
SKU:
518678

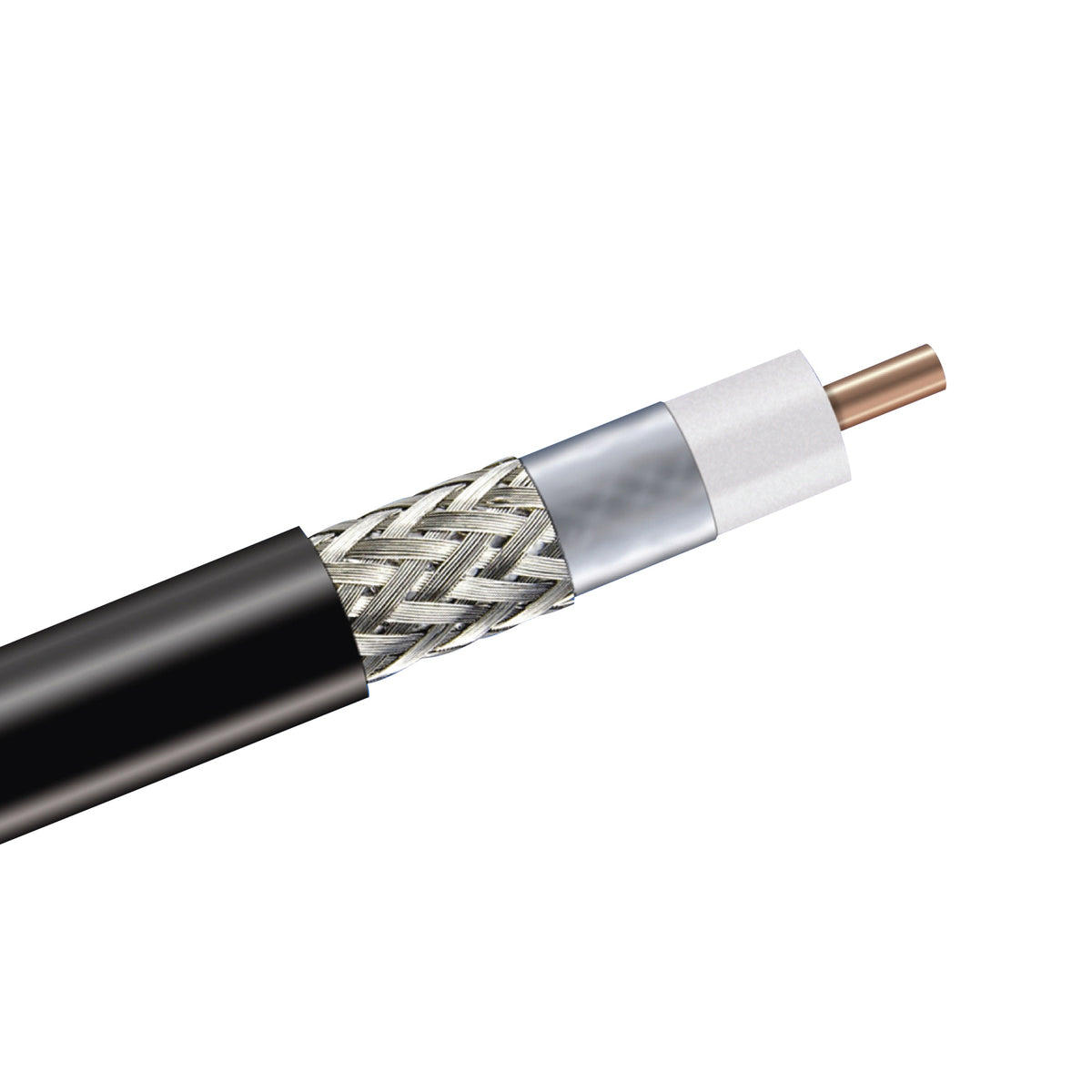

Commscope CNT-600-150M | CNT-600, CNT 50 Ohm Braided Coaxial Cable, 150 m, black PE jacket
Regular price
$753.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CNT-600-150M | CNT-600, CNT 50 Ohm Braided Coaxial Cable,...
Regular price
$753.53
Unit price
Description
Description
Commscope CNT-600-150M | CNT-600, CNT 50 Ohm Braided Coaxial Cable, 150 m, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Braided coaxial cable |
|---|---|
| Product Brand | CNT |
| Product Series | CNT-600 |
General Specifications
| Braid Coverage | 0.9 |
|---|---|
| Cable Type | CNT-600 |
| Jacket Color | Black |
Dimensions
| Cable Length | 150 m / 492.126 ft |
|---|---|
| Reel Flange | 550 mm / 21.654 in |
| Reel Hub | 254 mm / 10 in |
| Reel Traverse | 260 mm / 10.236 in |
| Diameter Over Dielectric | 11.56 mm / 0.455 in |
| Diameter Over Jacket | 14.99 mm / 0.59 in |
| Inner Conductor OD | 4.47 mm / 0.176 in |
| Outer Conductor OD | 12.5 mm / 0.492 in |
| Nominal Size | 0.600 in |
Electrical Specifications
| Cable Impedance | 50 ohm |
|---|---|
| Capacitance | 76 pF/m / 23.165 pF/ft |
| dc Resistance, Inner Conductor | 1.74 ohms/km / 0.53 ohms/kft |
| dc Resistance, Outer Conductor | 3.94 ohms/km / 1.201 ohms/kft |
| dc Test Voltage | 4600 V |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Maximum Frequency | 10.2 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 40 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 0.87 |
Material Specifications
| Braid Material | Tinned copper |
|---|---|
| Dielectric Material | Foam PE |
| Jacket Material | Non-halogenated PE |
| Inner Conductor Material | Copper-clad aluminum wire |
| Shield Tape Material | Aluminum |
Mechanical Specifications
| Minimum Bend Radius, Single Bend | 38.1 mm / 1.5 in |
|---|---|
| Tensile Strength | 159 kg / 350.535 lb |
| Bending Moment | 3.7 N-m / 32.748 in lb |
| Flat Plate Crush Strength | 1.1 kg/mm / 61.597 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
Packaging and Weights
| Packaging Type | Reel |
|---|---|
| Weight, gross | 30 kg / 66.139 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
