Brand: CommScope
|
SKU:
10593052

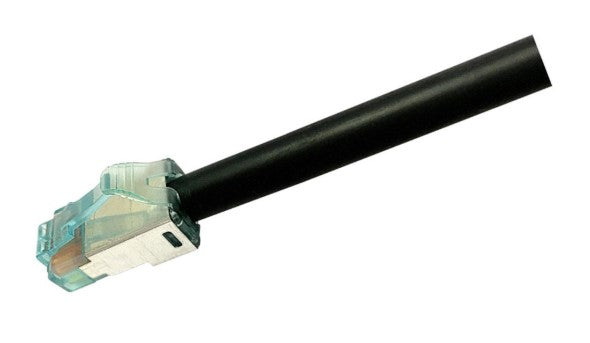

CommScope CO11152-01M048 | CAT 6, F/UTP, Outdoor Rated Patch Cord, 48m
Regular price
$194.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CO11152-01M048 | CAT 6, F/UTP, Outdoor Rated Patch Cord, 48m
Regular price
$194.81
Unit price
Description
Description
CommScope CO11152-01M048 | CAT 6, F/UTP, Outdoor Rated Patch Cord, 48m
Specifications
Specifications
CommScope - CO11152-01M048 - Specifications
| Product Type | Twisted pair patch cord |
|---|---|
| Cable Type | F/UTP (shielded) |
| Conductor Type | Solid |
| Interface, Connector A | RJ45 plug |
| Interface, Connector A | RJ45 plug |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black |
| Cable Assembly Length Range (m) | 48 |
| Diameter Over Jacket | 7.11 mm | 0.280 in |
| Compatible Conductor Gauge, solid | 24 AWG | 24 AWG |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Material Type | Phosphor Bronze | Polycarbonate |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Environmental Space | Outdoor |
