Brand: CommScope
|
SKU:
1050594
Commscope CO15542-01F020 | Jacket Color - Black | Cord Length - 20 Ft
Regular price
$34.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CO15542-01F020 | Jacket Color - Black | Cord Length - 20 Ft
Regular price
$34.78
Unit price
Description
Description

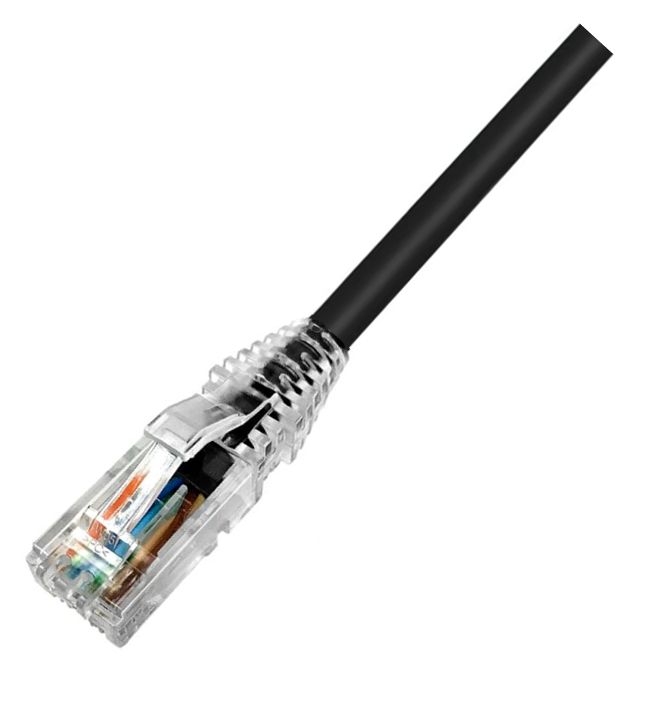

Commscope CO15542-01F020 | CommScope Cat 6, UTP, Outdoor Patch Cord
Specifications
Specifications
Wiring Diagram
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Series | CO |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords / Cords 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 100 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 328 |
| Diameter Over Jacket | 6.3 mm / 0.248 in |
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
|---|---|
| Safety Voltage Rating | 300 V |
Material Specifications
| Contact Plating Material | Gold in remating area / Nickel underplating |
|---|---|
| Material Type | Phosphor Bronze / Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Environmental Space | Outdoor |
| Flammability Rating | CM-LS |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Customer Owned Copper Outside Plant Guidelines
- Implementation considerations for cabling supporting remote powering
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Use of CommScope cabling for PoE applications
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
