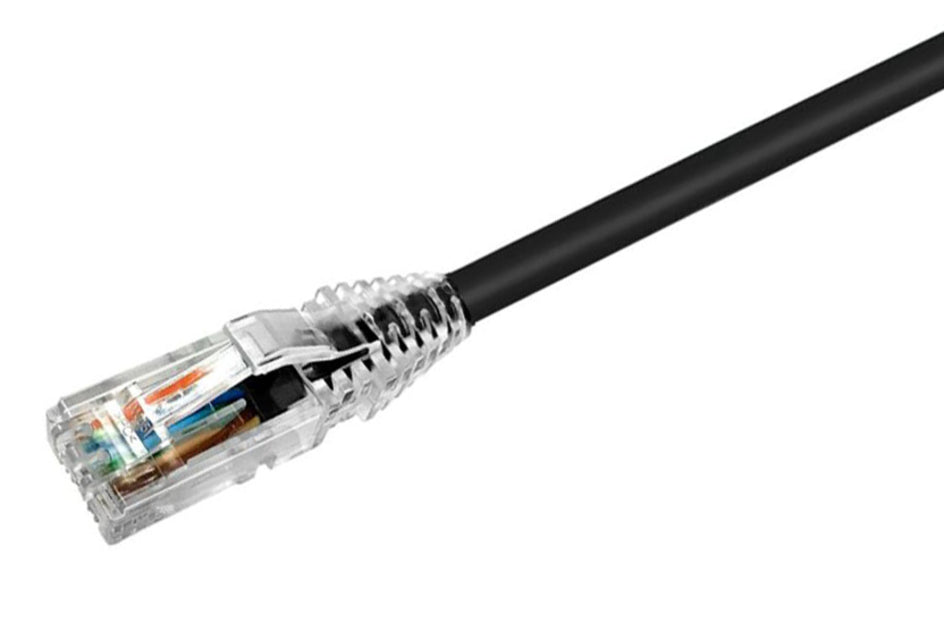

CommScope CO15582-01F125 | CommScope Cat 6A, UTP, Outdoor Patch Cord
Regular price
$154.88
Unit price
Brand: CommScope
|
SKU:
MM125-COM6A-UUTP-02
Regular price
$154.88
Unit price
Description
Description
CommScope CO15582-01F125 | CommScope Cat 6A, UTP, Outdoor Patch Cord
Specifications
Specifications
CommScope - CO15582-01F125 - Wiring Diagram
| Click on image to enlarge. |
|---|
CommScope - CO15582-01F125 - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Twisted pair patch cord |
| Product Series | CO |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
| ANSI/TIA Category | 6A |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
| Cable Assembly Length Range (m) | 1 – 100 |
| Cable Assembly Length Range (ft) | 1 – 328 |
| Diameter Over Jacket | 7.24 mm | 0.285 in |
| Compatible Conductor Gauge, solid | 24 AWG |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Contact Plating Material | Gold in remating area | Nickel underplating |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Material Type | Phosphor Bronze | Polycarbonate |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Environmental Space | Outdoor |
| Flammability Rating | CM-LS |
| Safety Standard | ETL | cETL |
| Packaging quantity | 1 |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
