Commscope CO199K2-07F024 | Jacket Color - Red | Cord Length -24Ft
Regular price
$47.97
Unit price
Brand: CommScope
|
SKU:
MM24-COMC6AU-03
Regular price
$47.97
Unit price
Description
Description

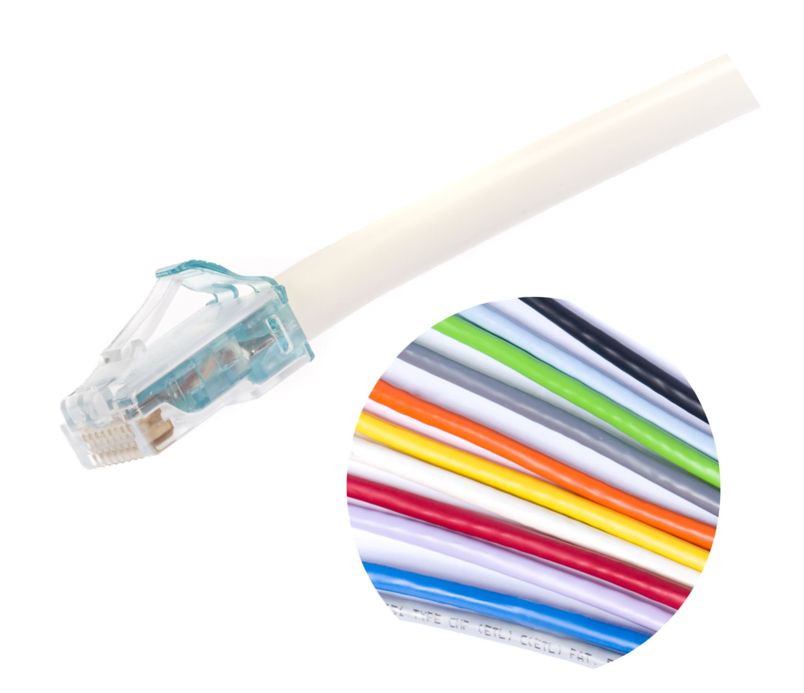

Commscope CO199K2-07F024 | MiNo6A Series Category 6A U/UTP Reduced Diameter LS-CM Dual Rated Cord
Features and Benefits
- Perfect for cross connects, workstations or racks with higher-density and/or limited space
- Small diameter unshielded twisted pair patch cords (0.195 inch/4.95 mm) that offers flexibility, durability and reliability
- Unique laminate barrier wrap provides excellent alien cross-talk performance
Specifications
Specifications
Wiring Diagram
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Twisted pair patch cord |
| Product Series | CO |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords / Cords 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 6A (except wire gauge) |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black / Blue / Dark gray / Light blue / Orange / Pink / Purple / Red / Spring green / Violet / White / Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 / ISO/IEC 11801 Class EA / TIA/EIA-568 Cat 6A |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 100 |
| Cable Assembly Length Range (cm) | 15 – 999 |
| Cable Assembly Length Range (in) | 6 – 999 |
| Diameter Over Jacket | 4.95 mm / 0.195 in |
| Compatible Conductor Gauge, solid | 28 AWG |
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
|---|---|
| Safety Voltage Rating | 300 V |
Material Specifications
| Conductor Material | Copper Alloy, Polycarbonate |
|---|---|
| Contact Plating Material | Gold over nickel |
| Material Type | Phosphor Bronze |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 90 N / 20.233 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Low Smoke Zero Halogen (LSZH) / Non-plenum |
| Flammability Rating | CM-LS |
| Safety Standard | UL 1863 |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Implementation considerations for cabling supporting remote powering
- 860645219 Reduced-Diameter Cat 6A (MiNo6A) Patch Cords
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Use of CommScope cabling for PoE applications
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
