Brand: CommScope
|
SKU:
10475845

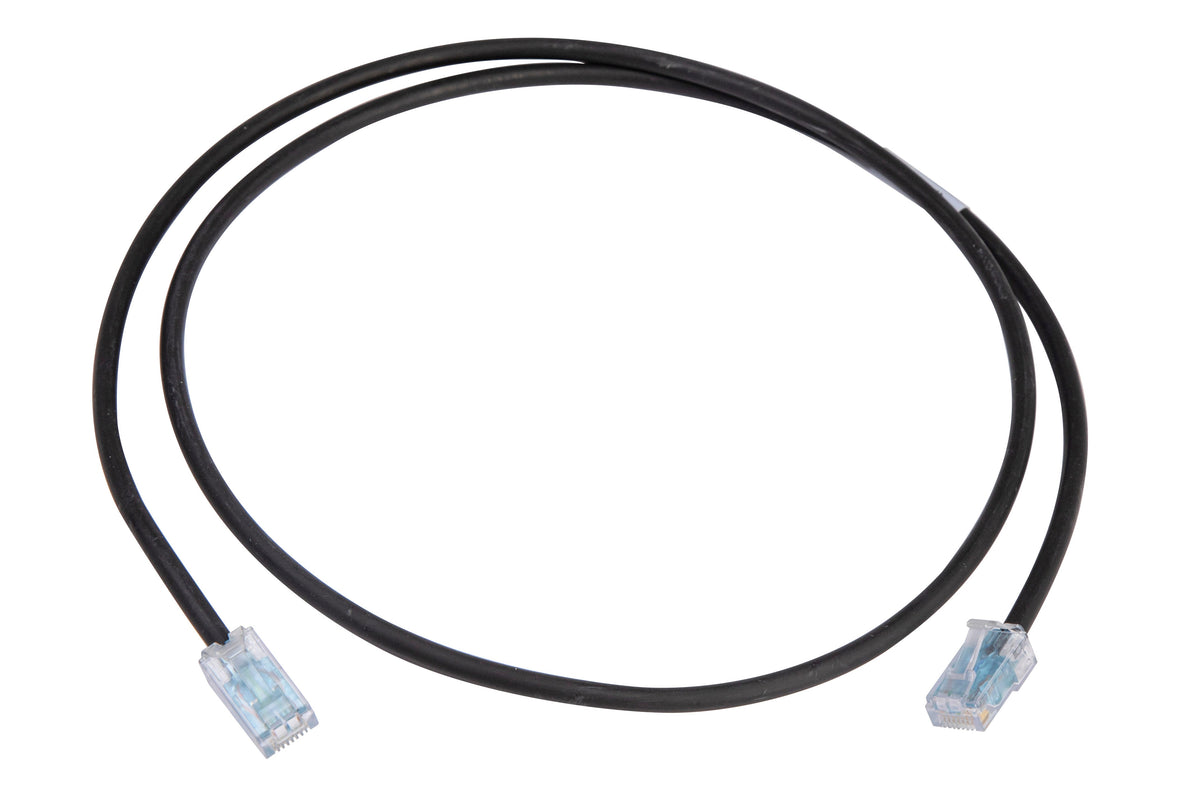

CommScope CO199K2-0ZM020 | MiNo6A Cat 6A U/UTP Reduced Diameter RJ45 Patch Cord, LS-CM Dual Rated
Regular price
$95.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CO199K2-0ZM020 | MiNo6A Cat 6A U/UTP Reduced Diameter RJ4...
Regular price
$95.94
Unit price
Description
Description
CommScope CO199K2-0ZM020 | MiNo6A Cat 6A U/UTP Reduced Diameter RJ45 Patch Cord, LS-CM Dual Rated.
CommScope - CO199K2-0ZM020 - Features
- Perfect for cross connects, workstations or racks with higher-density and/or limited space
- Small diameter unshielded twisted pair patch cords (0.195 inch/4.95 mm) that offers flexibility, durability and reliability
- Unique laminate barrier wrap provides excellent alien cross-talk performance
Specifications
Specifications
CommScope - CO199K2-0ZM020 - Product Categories
- Cable Assemblies
- Twisted Pair Cable Assemblies
- Twisted Pair Patch Cords
CommScope - CO199K2-0ZM020 - Specifications
| Portfolio | CommScope |
|---|---|
| Product Type | Twisted pair patch cord |
| Product Series | CO | CON | UTG |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
| ANSI/TIA Category | 6A |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Dark gray | Light blue | Orange | Pink | Purple | Red | Spring green | Violet | White | Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 | ISO/IEC 11801 Class EA | TIA/EIA-568 Cat 6A |
| Wiring | T568B |
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Cable Assembly Length Range (cm) | 15 – 999 |
| Cable Assembly Length Range (in) | 6 – 999 |
| Diameter Over Jacket | 4.95 mm | 0.195 in |
| Compatible Conductor Gauge, solid | 28 AWG |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Conductor Material | Bare copper |
| Contact Plating Material | Gold over nickel |
| Material Type | Phosphor bronze contacts | Polycarbonate plug housing |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 90 N | 20.233 lbf |
| Operating Temperature | -10 °C to +75 °C (+14 °F to +167 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) | Non-plenum |
| Flammability Rating | CM-LS |
