Brand: CommScope
|
SKU:
10202005
CommScope CPCS4X2-0CF075 | Single End Solid Cordage Modular Patch Cord, Slate/Gray, 75 Ft
Regular price
$98.40
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CPCS4X2-0CF075 | Single End Solid Cordage Modular Patch C...
Regular price
$98.40
Unit price
Brand: CommScope
|
SKU:
10202005
Regular price
$98.40
Unit price
Description
Description

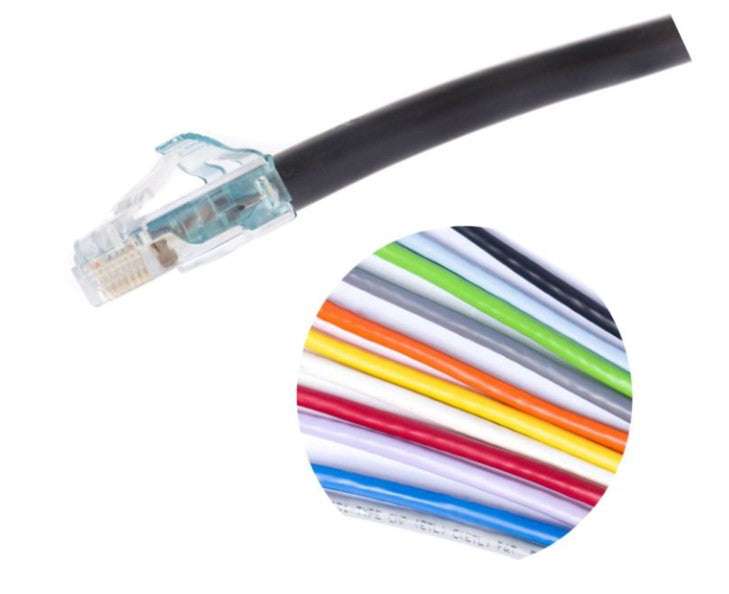

CommScope CPCS4X2-0CF075 | Single End Solid Cordage Modular Patch Cord, Slate/Gray, 75 Ft
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | SYSTIMAX |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | Unterminated |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 100 |
| Diameter Over Jacket | 7.24 mm | 0.285 in |
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
|---|---|
| Safety Voltage Rating | 300 V |
Material Specifications
| Contact Plating Material | Precious metals |
|---|---|
| Material Type | Copper alloy | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Non-plenum |
| Flammability Rating | UL 94 V-0 |
