Brand: CommScope
|
SKU:
10147805

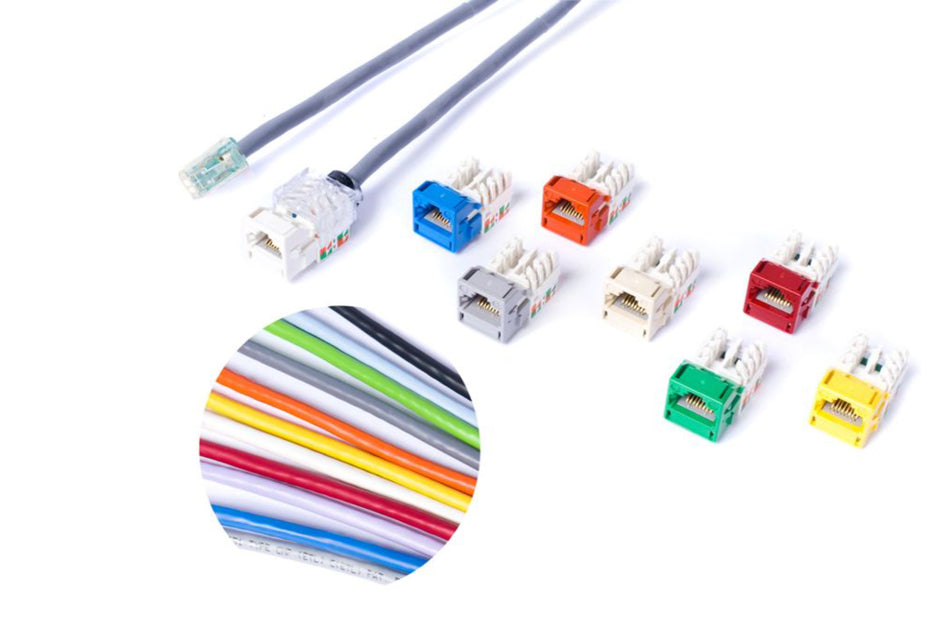

CommScope CPCSUX2-11F015 | GigaSPEED X10D 360GS10E to MGS600 on 1095B Solid Cordage Zone Extension Cord
Regular price
$54.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CPCSUX2-11F015 | GigaSPEED X10D 360GS10E to MGS600 on 109...
Regular price
$54.12
Unit price
Description
Description
CommScope CPCSUX2-11F015 | GigaSPEED X10D 360GS10E to MGS600 on 1095B Solid Cordage Zone Extension Cord
Specifications
Specifications
CommScope - CPCSUX2-11F015 - Wiring Diagram
| Click on image to enlarge. |
|---|
CommScope - CPCSUX2-11F015 - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | SYSTIMAX® |
| Product Type | Twisted pair patch cord |
| Product Brand | GigaSPEED X10D® |
| Product Series | CPC |
| ANSI/TIA Category | 6A |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Information Outlet Color | Black | Blue | Gray | Green | Ivory | Orange | Red | White | Yellow |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | Information outlet |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Dark gray | Light blue | Lilac | Orange | Purple | Red | Slate | Spring green | Violet | White | Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Diameter Over Jacket | 7.24 mm | 0.285 in |
| Compatible Conductor Gauge, solid | 24 AWG |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | Polycarbonate |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ETL | cETL |
| Packaging quantity | 1 |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
