Brand: CommScope
|
SKU:
977485

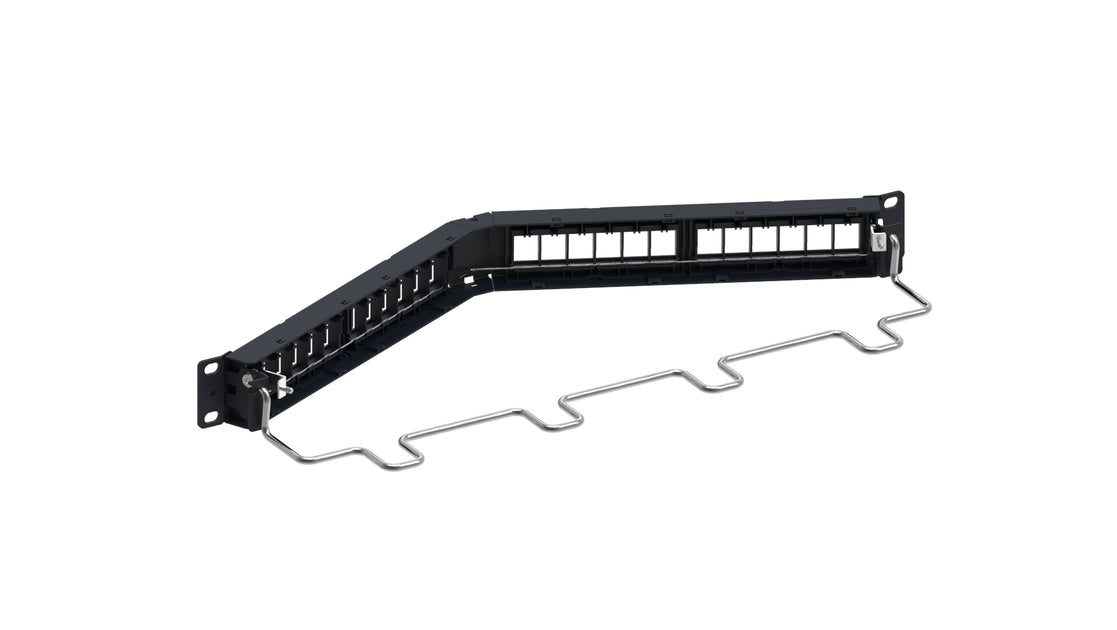

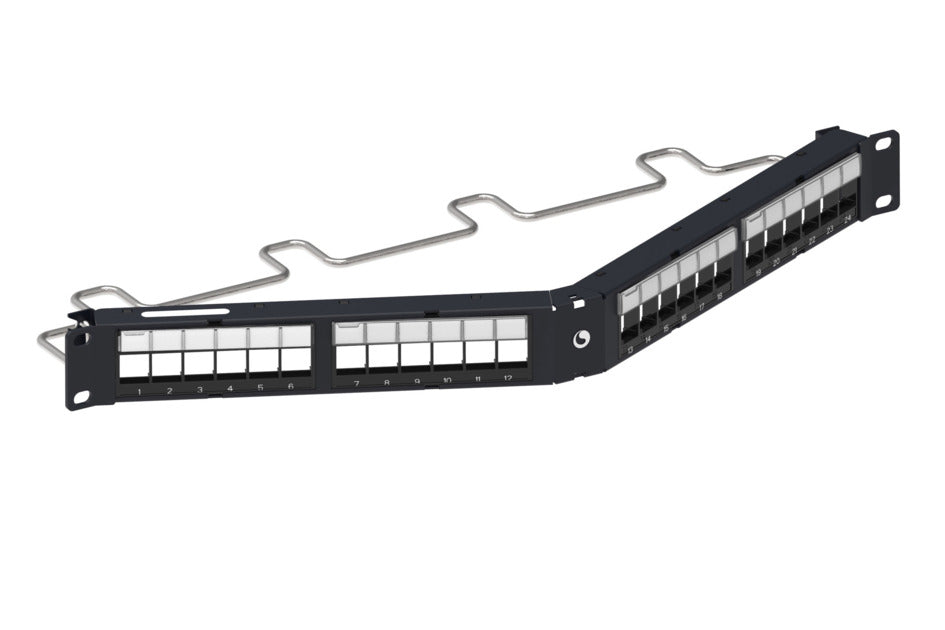

Commscope CPPA-SDDMSL1U24 | Angled Discrete Distribution Module Panel, SL, STP, 1U, 24 port
Regular price
$97.17
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CPPA-SDDMSL1U24 | Angled Discrete Distribution Module Pan...
Regular price
$97.17
Unit price
Brand: CommScope
|
SKU:
977485
Regular price
$97.17
Unit price
Description
Description
Commscope CPPA-SDDMSL1U24 | Angled Discrete Distribution Module Panel, SL, STP, 1U, 24 port
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | RJ45 patch panel |
General Specifications
| ANSI/TIA Category | 6 / 6A |
|---|---|
| Cable Type | Shielded |
| Color | Black |
| Modules, quantity | 0 |
| Panel Style | Angled |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Total Ports, quantity | 24 |
Dimensions
| Height | 44.45 mm / 1.75 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth, with cable management | 210.82 mm / 8.3 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic / Powder-coated steel |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | RCM / UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 860636329 Discrete Distribution Module Panels (DDM)
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope DYMO Labeling Solution for Enterprise Products
- Label template 8.5x11 for DDM panels
- Label template A4 for DDM panels
- Visio Stencil Resources
