Brand: CommScope
|
SKU:
CM-00424CS24-5EU-06

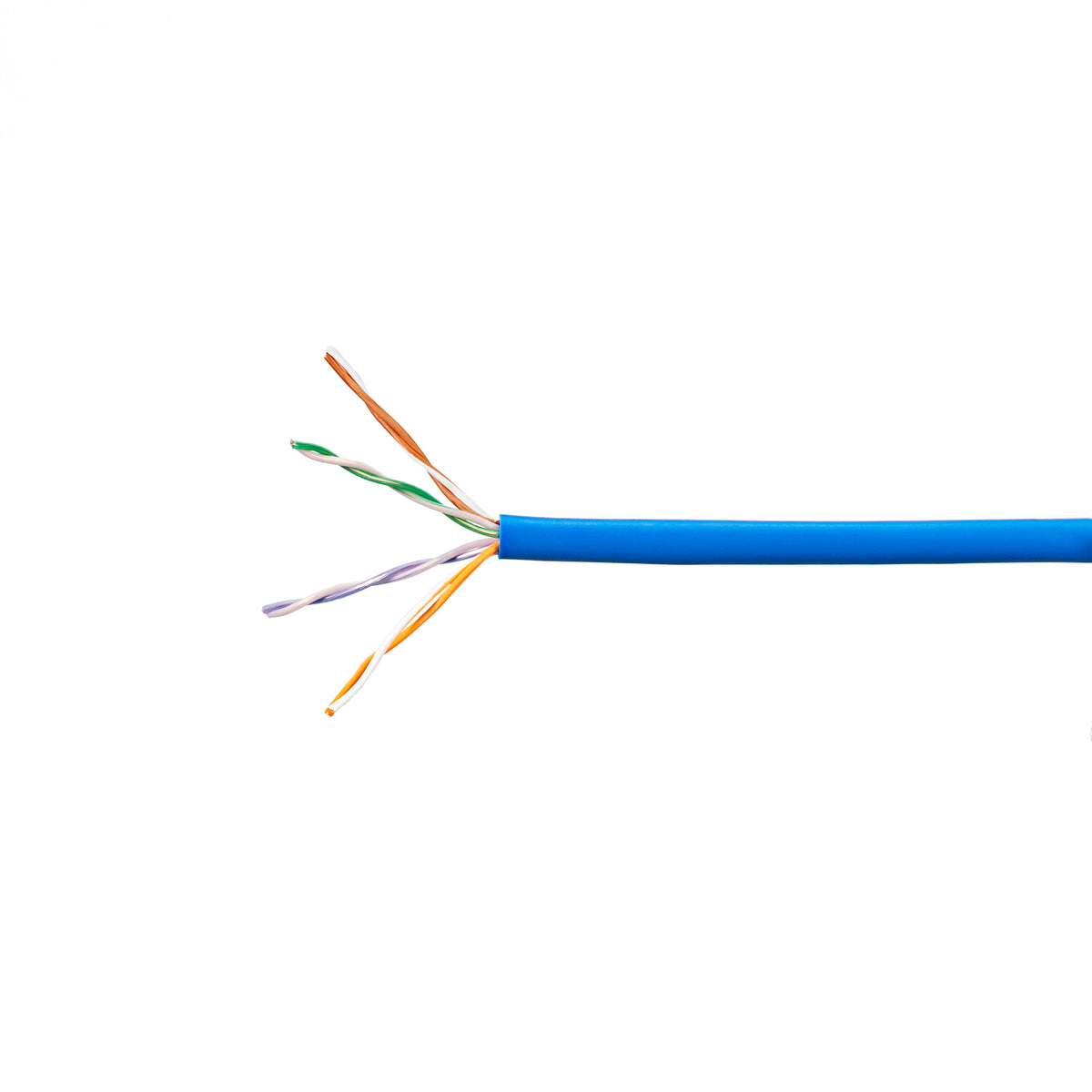

Commscope CS24R BLU C5E 4/24 U/UTP CPK 1KFT | Copper Cable, category 5e, 4 pair, UTP, 350 MHz, CMR rated, 1000 ft pull-box, blue
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CS24R BLU C5E 4/24 U/UTP CPK 1KFT | Copper Cable, categor...
Regular price
$1.45
Unit price
Brand: CommScope
|
SKU:
CM-00424CS24-5EU-06
Regular price
$1.45
Unit price
Shipping calculated at checkout.
Description
Description
Commscope CS24R BLU C5E 4/24 U/UTP CPK 1KFT | Copper Cable, category 5e, 4 pair, UTP, 350 MHz, CMR rated, 1000 ft pull-box, blue
Specifications
Specifications
Product Classification
| Regional Availability | Asia |
|---|---|
| Portfolio | NETCONNECT |
| Product Type | Twisted pair cable |
| Product Series | 520 Series |
General Specifications
| Product Number | 520R |
|---|---|
| ANSI/TIA Category | 5e |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Blue |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D / CENELEC EN 50288-6-1 / ISO/IEC 11801 Class D |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Jacket, nominal | 4.699 mm / 0.185 in |
| Conductor Gauge, singles | 24 AWG |
Electrical Specifications
| Operating Voltage, maximum | 80 V |
|---|---|
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
| Safety Voltage Rating | 300 V |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
Environmental Specifications
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
|---|---|
| Environmental Space | Non-plenum |
Packaging and Weights
| Cable weight | 32.740 kg/km / 22 lb/kft |
|---|---|
| Packaging Type | Pull box |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- CABLE, 52O SERIES CAT 5e, ENHANCED, 4 UTP, 24AWG, CMR
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Use of NETCONNECT cabling for PoE applications
- Visio Stencil Resources
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
