Brand: CommScope
|
SKU:
CMP-00423CS34-6R-09

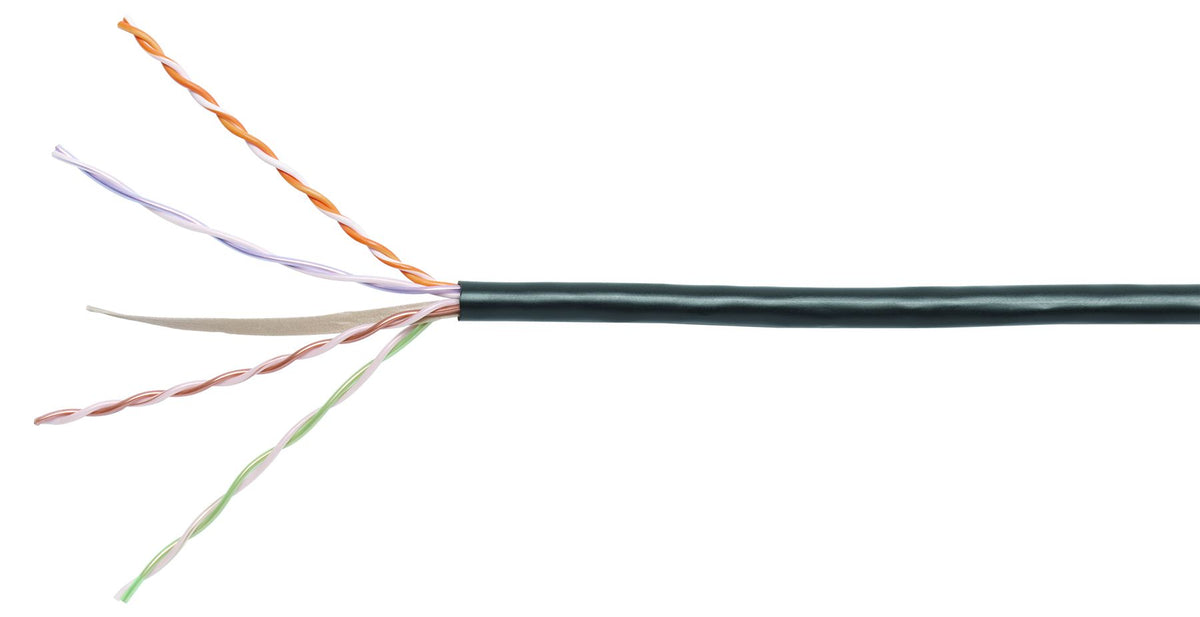

Commscope CS34P GRY C6 4/23 U/UTP RL 3KFT | CS34P ETL Verified Category 6 U/UTP Cable, plenum, gray jacket, 4 pair count, 3000 ft (914 m) length, reel
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CS34P GRY C6 4/23 U/UTP RL 3KFT | CS34P ETL Verified Cate...
Regular price
$1.45
Unit price
Brand: CommScope
|
SKU:
CMP-00423CS34-6R-09
Regular price
$1.45
Unit price
Shipping calculated at checkout.
Description
Description
Commscope CS34P GRY C6 4/23 U/UTP RL 3KFT | CS34P ETL Verified Category 6 U/UTP Cable, plenum, gray jacket, 4 pair count, 3000 ft (914 m) length, reel
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Twisted pair cable |
General Specifications
| Product Number | CS34P |
|---|---|
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Gray |
| Note | All electrical transmission tests include swept frequency measurements |
| Pairs, quantity | 4 |
| Separator Type | Tape separator |
| Transmission Standards | ANSI/TIA-568.2-D / CENELEC EN 50288-6-1 / ISO/IEC 11801 Class E |
Dimensions
| Cable Length | 914.4 m / 3000 ft |
|---|---|
| Diameter Over Conductor | 0.978 mm / 0.0385 in |
| Diameter Over Jacket, nominal | 5.461 mm / 0.215 in |
| Jacket Thickness | 0.533 mm / 0.021 in |
| Conductor Gauge, singles | 23 AWG |
Electrical Specifications
| Characteristic Impedance | 100 ohm |
|---|---|
| dc Resistance Unbalance, maximum | 0.05 |
| dc Resistance, maximum | 8 ohms/100 m / 2.438 ohms/100 ft |
| Delay Skew, maximum | 45 ns |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.75 | Operating Frequency, maximum |
| 250 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
| Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A | Safety Voltage Rating |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | FEP / Polyolefin |
| Jacket Material | PVC |
| Separator Material | FEP |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Plenum |
| Flame Test Method | CMP/FT6 / NEC Article 800 / NFPA 262 / UL 444 / UL 910 |
| Smoke Test Method | CMP/FT6 |
Packaging and Weights
| Cable weight | 38.395 kg/km / 25.8 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
