Brand: CommScope
|
SKU:
460972

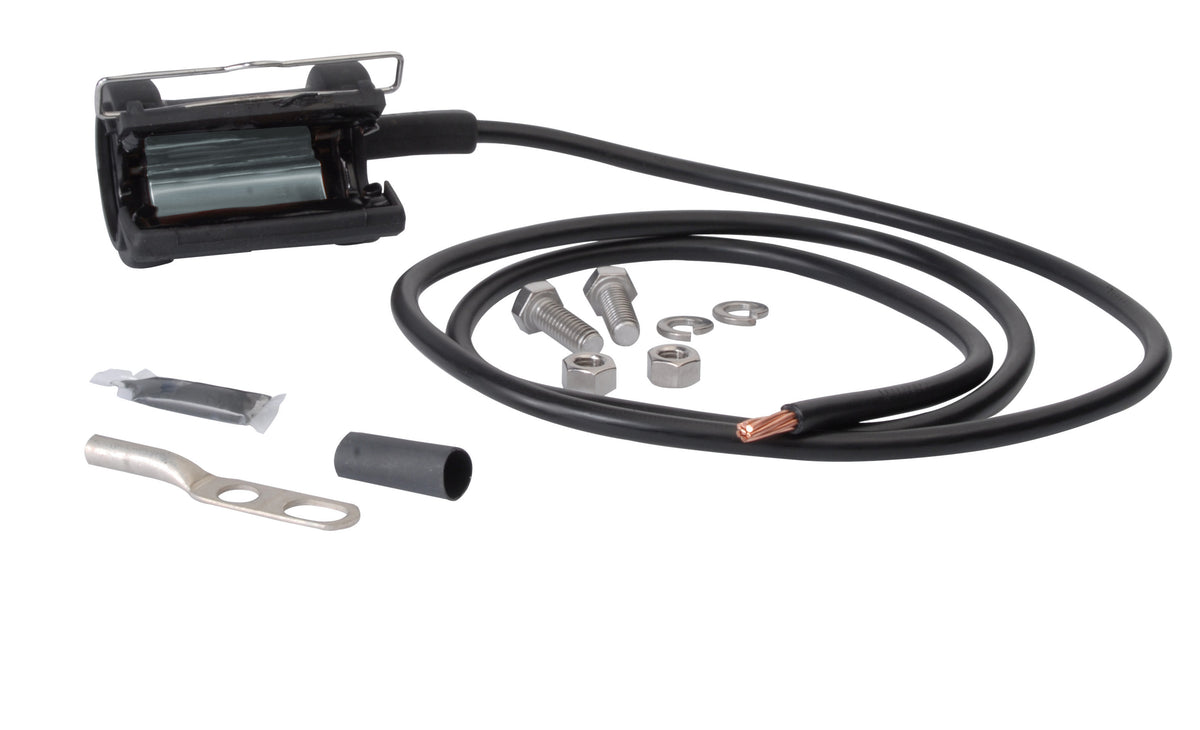

CommScope CSG12-12B2U | SureGround Universal Compact Grounding Kit for 1/2 in corrugated and smoothwall coaxial cable
Regular price
$27.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
CommScope CSG12-12B2U | SureGround Universal Compact Grounding Kit for 1/2 in corrugated and smoothwall coaxial cable
Specifications
Specifications
CommScope - CSG12-12B2U - Product Categories
- Structural Support, Tools & Accessories
- Grounding Equipment
- Grounding Kits
CommScope - CSG12-12B2U - Product Classification
| Product Type | Grounding kit |
|---|---|
| Product Brand | SureGround |
| Ordering Note | CommScopestandard product (Global) |
CommScope - CSG12-12B2U - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | SureGround Universal Compact Grounding Kit for 1/2 in corrugated and smoothwall coaxial cable |
| Model Number | CSG12-12B2U |
| Bonding Conductor Jacketing Material | PVC |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 16 mm² |
| Cable Type | Corrugated | Smoothwall |
| Color | Black |
| Grounding Kit Type | Compact SureGroundGrounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Field attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in |
CommScope - CSG12-12B2U - Additional Information
| Dimensions | - |
|---|---|
| Enclosure Width | 25.4 mm | 1 in |
| Bonding Conductor Length | 1143 mm | 45 in |
| Enclosure Length | 55.88 mm | 2.2 in |
| Compatible Diameter, maximum | 16.256 mm | 0.64 in |
| Compatible Diameter, minimum | 15.367 mm | 0.605 in |
| Nominal Size | 1/2 in |
| Electrical Specifications | - |
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
| Material Specifications | - |
| Locking Bail Material | Stainless steel |
| Rivet Material | Tinned copper |
| Environmental Specifications | - |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Tinned copper strap contact overmolded with EPDM rubber |
