Brand: CommScope
|
SKU:
465270

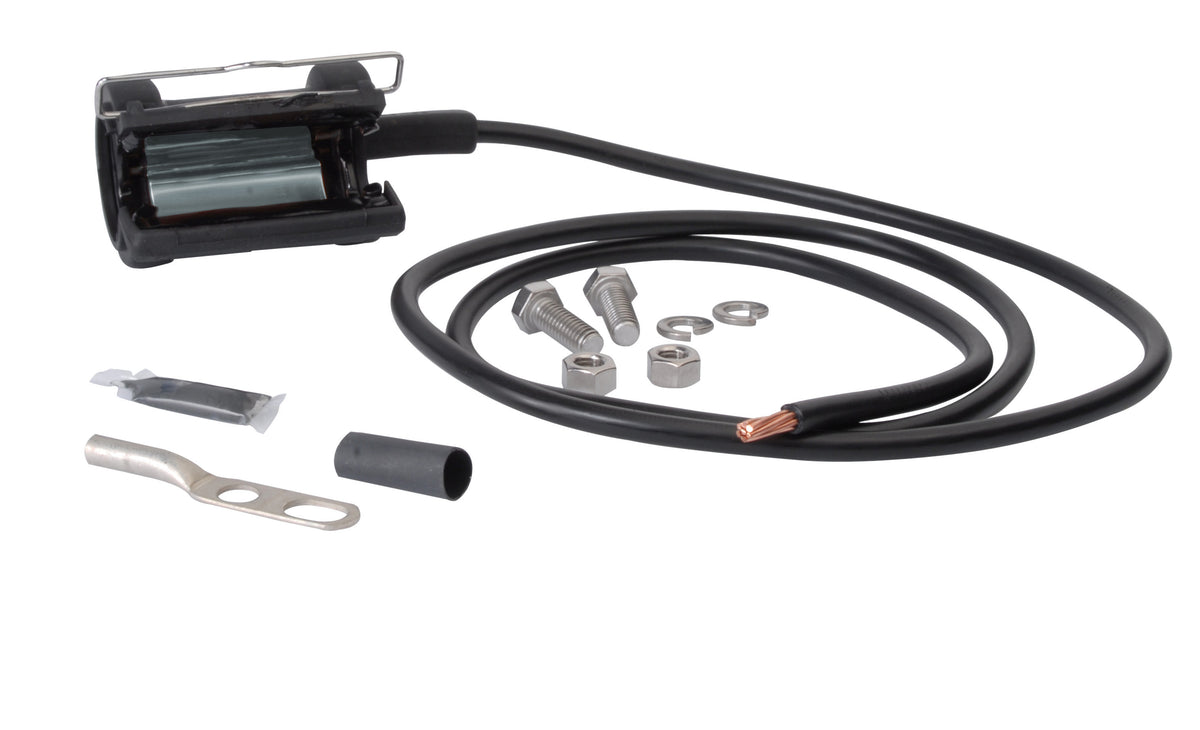

Commscope CSG78-12B2U | SureGround Universal Compact Grounding Kit for 7/8 in corrugated and smoothwall coaxial cable
Regular price
$36.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CSG78-12B2U | SureGround Universal Compact Grounding Kit ...
Regular price
$36.30
Unit price
Description
Description
Commscope CSG78-12B2U | SureGround Universal Compact Grounding Kit for 7/8 in corrugated and smoothwall coaxial cable
Specifications
Specifications
Product Classification
| Product Type | Grounding kit |
|---|---|
| Product Brand | SureGround |
| Ordering Note | CommScope standard product in the United States and Canada |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
|---|---|
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Corrugated / Smoothwall |
| Color | Black |
| Grounding Kit Type | Compact SureGround Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Field attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in |
Dimensions
| Enclosure Width | 40.64 mm / 1.6 in |
|---|---|
| Bonding Conductor Length | 1143 mm / 45 in |
| Enclosure Length | 63.5 mm / 2.5 in |
| Compatible Diameter, maximum | 28.372 mm / 1.117 in |
| Compatible Diameter, minimum | 27.559 mm / 1.085 in |
| Nominal Size | 7/8 in |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
|---|---|
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
Material Specifications
| Locking Bail Material | Stainless steel |
|---|---|
| Rivet Material | Tinned copper |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Tinned copper strap contact overmolded with EPDM rubber |
Packaging and Weights
| Height, packed | 447.04 mm / 17.6 in |
|---|---|
| Width, packed | 396.24 mm / 15.6 in |
| Length, packed | 68.58 mm / 2.7 in |
| Included | Grounding kit / Hardware / Lug |
| Packaging quantity | 1 |
| Weight, gross | 0.45 kg / 0.992 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Compact SureGround Plus Version 2 Grounding Kit for Coaxial Cables
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
- CSG78-12B2U Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- CommScope Limited Product Warranty
