Brand: CommScope
|
SKU:
10404021

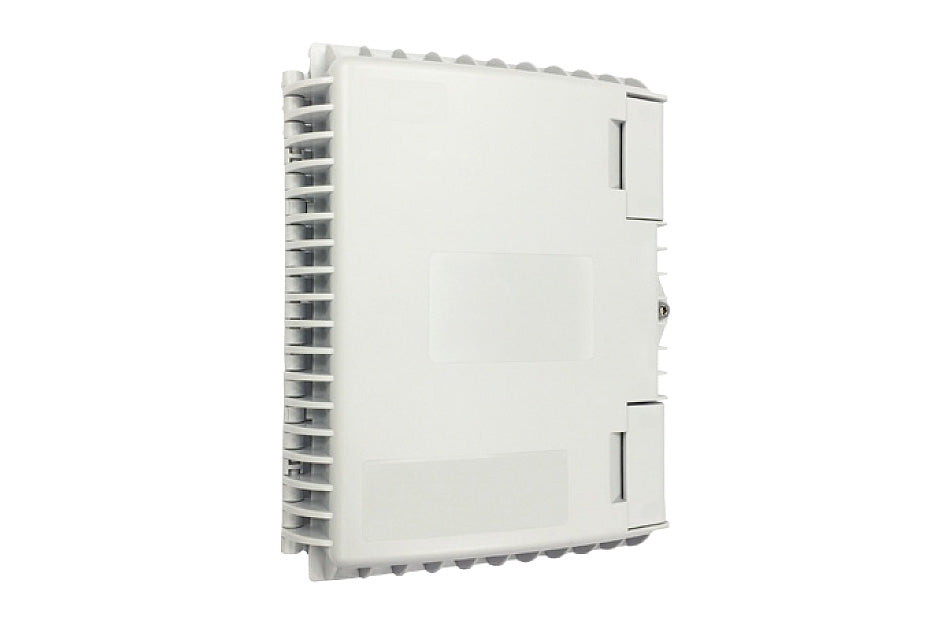

CommScope CU9261-000 | OWB Fiber Optic Wall Mount Fiber Box, 1 LC/APC adapter, no splicing, no splitters
Regular price
$32.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CU9261-000 | OWB Fiber Optic Wall Mount Fiber Box, 1 LC/A...
Regular price
$32.32
Unit price
Description
Description
CommScope CU9261-000 | OWB Fiber Optic Wall Mount Fiber Box, 1 LC/APC adapter, no splicing, no splitters
Specifications
Specifications
CommScope - CU9261-000 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Wall Boxes & Accessories
- Wall Boxes
CommScope - CU9261-000 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | North America |
|---|---|
| Product Type | Fiber wall box |
| Product Series | OWB |
CommScope - CU9261-000 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | OWB Fiber Optic Wall Mount Fiber Box, 1 LC/APC adapter, no splicing, no splitters |
| Model Number | CU9261-000 | OWB-S-N0-L21-NN-W |
| Functionality | Patching |
| Access | Front |
| Application | For cables with outer diameter 3 x 5.4 mm: 1 on top + 1 on bottom | For cables with outer diameter up to 10 mm: each on both sides | For cables with outer diameter up to 5 mm: 1 on rear + 4 on bottom |
| Enclosure Color | Gray |
| Front Cover Type | Hinged with latches |
| Interface | LC/APC |
| Lock Type | Ski latch and screw |
| Mounting | Wall |
| Port Capacity, maximum | 4 |
| Port, quantity | 1 |
CommScope - CU9261-000 - Additional Information
| Dimensions | - |
|---|---|
| Height | 209.8 mm | 8.26 in |
| Width | 173.74 mm | 6.84 in |
| Depth | 71.88 mm | 2.83 in |
| Material Specifications | - |
| Enclosure Material Type | LSZH thermoplastic |
| Optical Specifications | - |
| Fiber Mode | Singlemode |
| Insertion Loss, Terminal Connector, maximum | 0.3 dB |
| Environmental Specifications | - |
| Installation temperature | -5 °C to +45 °C (+23 °F to +113 °F) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Environmental Space | Outdoor |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP65 |
