Commscope CW-M4-63 | Corner Wall Mount, 4-1/2 in OD x 63 in pipe
Regular price
$872.85
Unit price
Brand: CommScope
|
SKU:
465283
Regular price
$872.85
Unit price
Description
Description
Commscope CW-M4-63 | Corner Wall Mount, 4-1/2 in OD x 63 in pipe
Specifications
Specifications

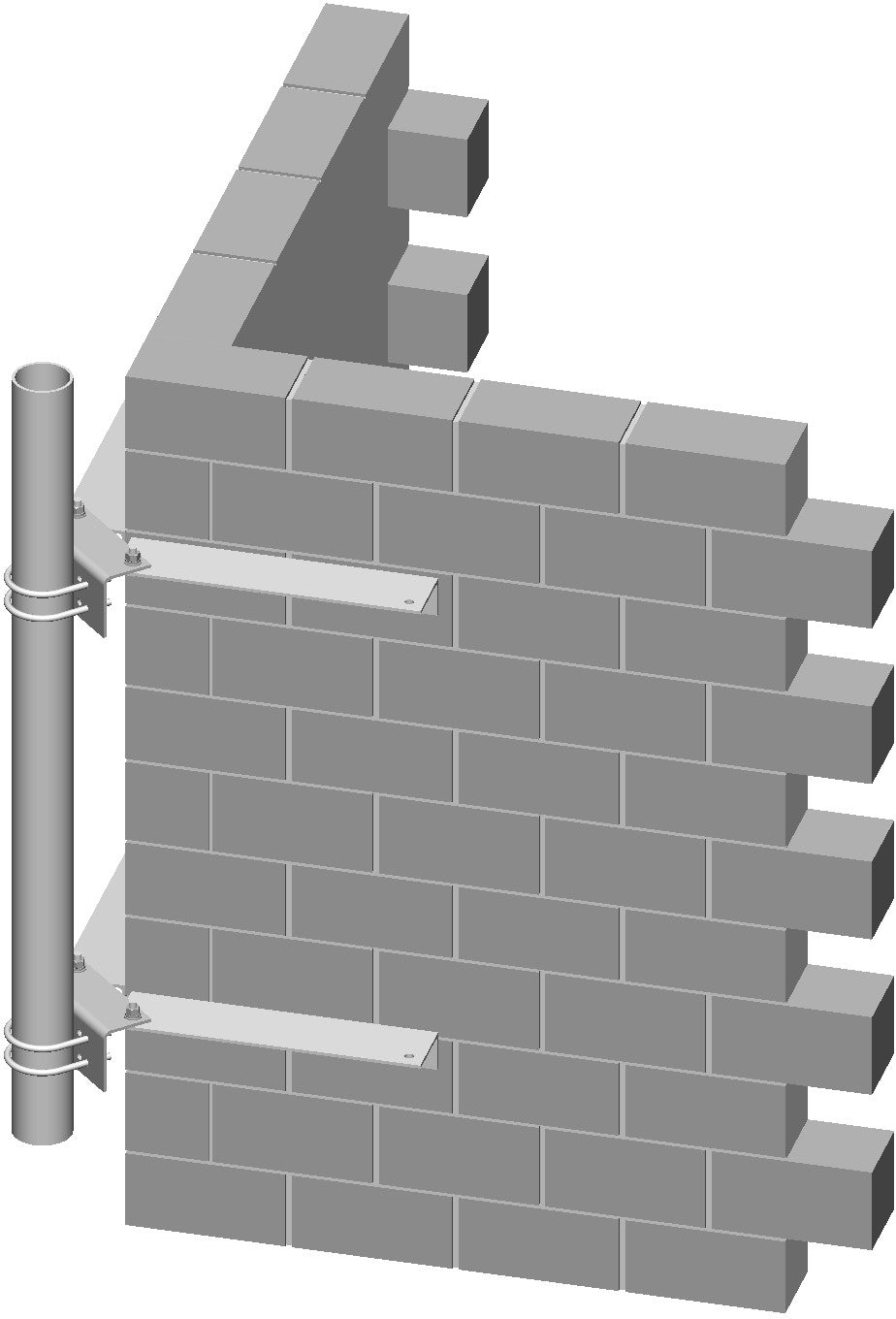

Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wall mount kit |
|---|
General Specifications
| Mounting | Walls |
|---|---|
| Pipe, quantity | 1 |
Dimensions
| Height | 609.6 mm / 24 in |
|---|---|
| Width | 1219.2 mm / 48 in |
| Length | 1600.2 mm / 63 in |
| Pipe Length | 1600.2 mm / 63 in |
| Pipe Outer Diameter | 114.3 mm / 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts |
|---|
Packaging and Weights
| Included | Brackets (2) / Pipe mounts / Wall mount hardware |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 73.3 kg / 161.599 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
