Brand: CommScope
|
SKU:
10426543

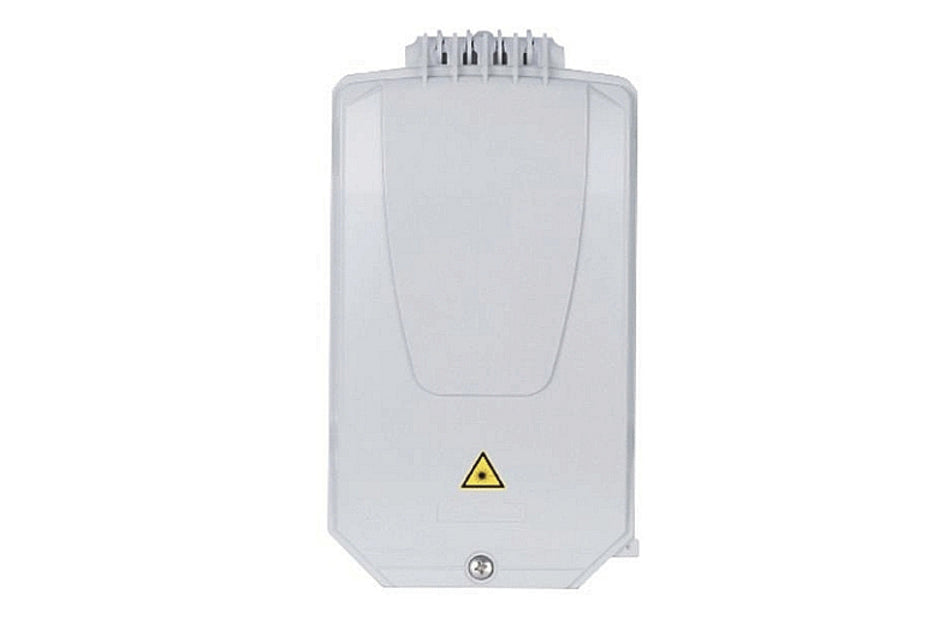

CommScope CW6634-000 | BUDI Fiber Optic Wall mount Enclosure, 8 SC/UPC Adapters, Single Element FIST Splice Trays
Regular price
$121.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CW6634-000 | BUDI Fiber Optic Wall mount Enclosure, 8 SC/...
Regular price
$121.49
Unit price
Description
Description
CommScope CW6634-000 | BUDI Fiber Optic Wall mount Enclosure, 8 SC/UPC Adapters, Single Element FIST Splice Trays
CommScope - CW6634-000 - Features
- Compact, wall mountable Fiber enclosures for Indoor and outdoor use
- Specifically designed for fast FTTH deployment and easy customer connection
- Available with splicing (FIST) and/or patching and/or splitter combinations
- Multiple and modular wrap around Cable port sealing options
Specifications
Specifications
CommScope - CW6634-000 - Dimension Drawing
| Click on image to enlarge. |
|---|
CommScope - CW6634-000 - Specifications
| Regional Availability | EMEA |
|---|---|
| Portfolio | CommScope® |
| Product Type | Fiber wall box |
| Product Brand | BUDI™ |
| Product Series | BUDI-2S |
| Functionality | Patching | Splicing |
| Access | Front |
| Enclosure Color | Gray |
| Front Cover Type | Snap-on cover |
| Interface | SC/UPC |
| Mounting | Wall |
| Port, quantity | 8 |
| Splice Tray Construction | SE (Single element) |
| Splicing Capacity, maximum | 8 |
| Height | 260 mm | 10.236 in |
| Height, with cover | 285 mm | 11.22 in |
| Width | 155 mm | 6.102 in |
| Depth | 60 mm | 2.362 in |
| Enclosure Material Type | LSZH thermoplastic |
| Environmental Space | Indoor/Outdoor |
| Qualification Standards | IEC 60529, IP54 | IEC 61753-1, category G |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
